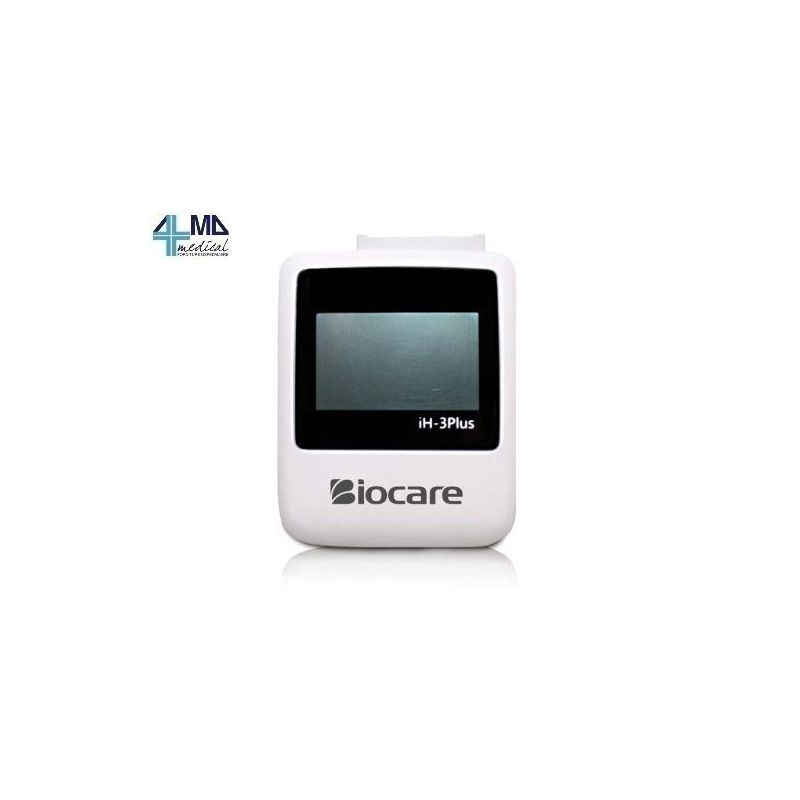

BIOCARE HOLTER ECG 3 CHANNELS - IH 3 PLUS

GENERAL CHARACTERISTICS -

• These electromedical devices use advanced technology to process the digital signal and are able to control, record, store and print data very quickly, accelerating and making health professionals more efficient.
• Thanks to innovative software, in addition to ECG signals, QRS wave monitoring and analysis are followed, advanced arrhythmia, ST segment, pacemaker, heart rate variability (VFC), and many other parameters.
• All data can be transferred to a computer with Windows operating system. Both models come with a memory card (SD card), an operating autonomy of more than 72 hours and different measurement modes.
• They also have the ability to print with customizable parameters, and with the possibility of including the logo in the impressions and information of the health structure in question.



TECHNICAL CHARACTERISTICS -

• Light and high energy efficiency
• ECG quality control on the graphic screen
• Operating duration of more than 3 days
• Frequency of samples ECG256Hz/12bit
• Frequency of samples VLP1000Hz/12bit
• Frequency of samples Pacemaker 1000Hz/12bit
• LCD
• Energy consumption
• ECGLTD241 Cable
• 3 channels
• 5/7 drivers



DURATION OF FUNCTIONING

• Standard models 24 hours
• Advanced model option over 72 hours



PAROSTERS

• Width band: 0.05 - 40 Hz
• Dynamic input frequency: - + 5mV ECG
• CMRR/2005 80 dB
• Input impedance 10M
• 12-bit digital signal resolution
• Detection of peacemaker
• Report VLP ECG (optional)
• ALMACENAMIENT / TRANSMISSION
• SD memory card
• Memory capacity of 2G or more
• Reader transfer mode, SD card

Dimensions and weight:

• L: 65 x W: 52 x H: 18 mm
• 40g
