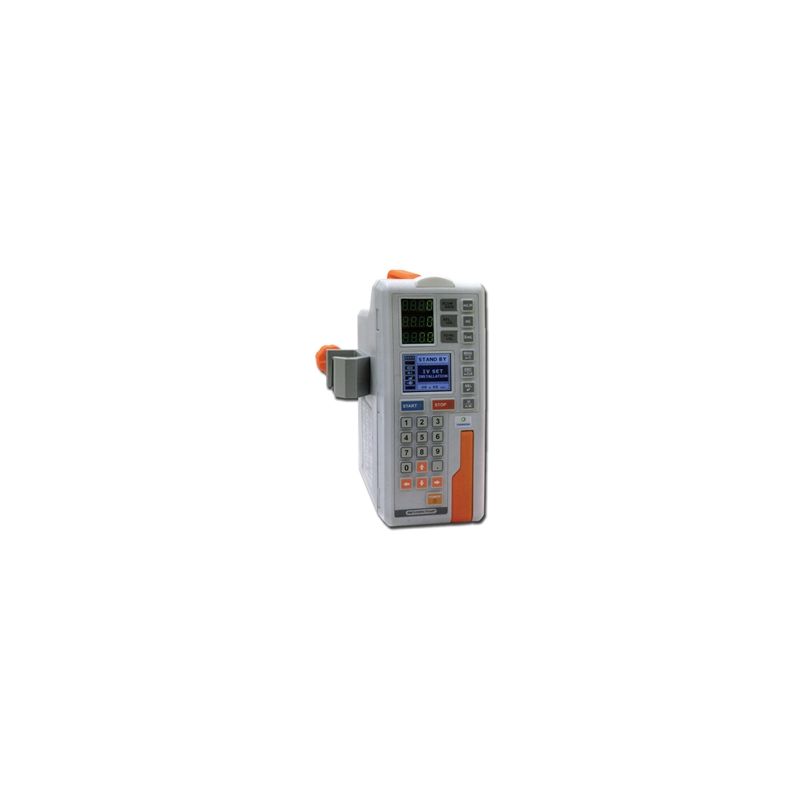

GIMA MICRO INFUSION PUMP

Product ID: 5739

This pump using peristaltic method is a cutting-edge pump realizing high fl ow precision with compatibility with I.V. set of various brands through ultrasonic bubble detection.

More details

1 188,99 €

Quantity:

+ wishlist

More info

This pump using peristaltic method is a cutting-edge pump realizing high fl ow precision with compatibility with I.V. set of various brands through ultrasonic bubble detection.
IP-7700 provides simple and easy setup process with its numerical silicon keypad. FND and color LCD provides complete information and user gets the information at one glance. Most infusion condition such as K.V.O. rate, purge rate and bolus can be setup as operating application. Supplied with battery.

Main features
- Light and compact design: light as 3.5 kg, compact design, and easy to use.
- Standard compatibility with 4 brands of IV SET: TERUMO (TS PA 200L), BD (A122), KOREAN VACCINE (1 and 2), ARIES. Each pump can be calibrated for up to 9 different IV set.
- Flexible flow setting and easy operation method: Flow-setting range of 1~1000 ml/h, 0,1~999,9 ml/h is available for wide range settings and numerical keypad is easy to use for setting flow-volume.
- Full program dosage feature (option): it can calculate the right flow rate for a patient and inject promptly.
- Easy recognition of alarm: it notifies errors and emergencies with LED light and buzzer, simultaneous visual and audio alarm system.
- Notifying remaining battery: battery LED is attached to notify charged battery showing remaining battery and when to recharge.
- Keep Vein Open feature: when reached preset value, it converts to low flow speed of 3ml/h (when IV set is 15, 19, 20 drops/ml) or 1ml/h (when IV set is 60 drops/ml) automatically to prevent flow route clog due to blood coagulation.
- Ultrasonic air bubble detector
- Suitable also for VET use

• Flow volume setting range:
- 1~1000 ml/h (1 ml infusion interval)
- 0.1~999.9 ml/h (0.1ml infusion interval)
• Flow volume error margin: ±5%
• Infusion limit volume range: 1~9999 ml
• Total estimated volume range: 1~9999 ml
• K.V.O rate(Vein maintaing function): 1 ml/h ~ 10 ml/h adjustable
• Pump method: Peristaltic method
• Size: 100 x 190 x 250 mm
• Weight: 3.5kg
• Rapid flow volume (Purge): 1-1000 ml/h adjustable
• Bolus: 1~1000 ml/h adjustable
• Nurse call: DC24V, 0.5A
• Alarm features:
• Air in line, occlusion, flow error (free flow), door open, K.V.O. (Infusion completion), standby, low battery, alarm, device malfunction (CPU error), empty container (with optional drop sensor)

Special features:

Keypad lock, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, occ. level, history call-back.
• Power:
- AC 230V, 50/60Hz and DC9.6V inner source adapter
- DC 24V / 1A Available on request 110V / 60Hz
• Maximum power consumption: 15VA
• Electric protection levels: Class II B, inner source device, CF type
• Waterproof level: IPX2
• Battery type: Ni-Cd
• Battery using time: 5 hrs. (when infusing 125 ml/h)
• Battery charging time: Minimum 6 hours
• Battery life: approx 6 months
