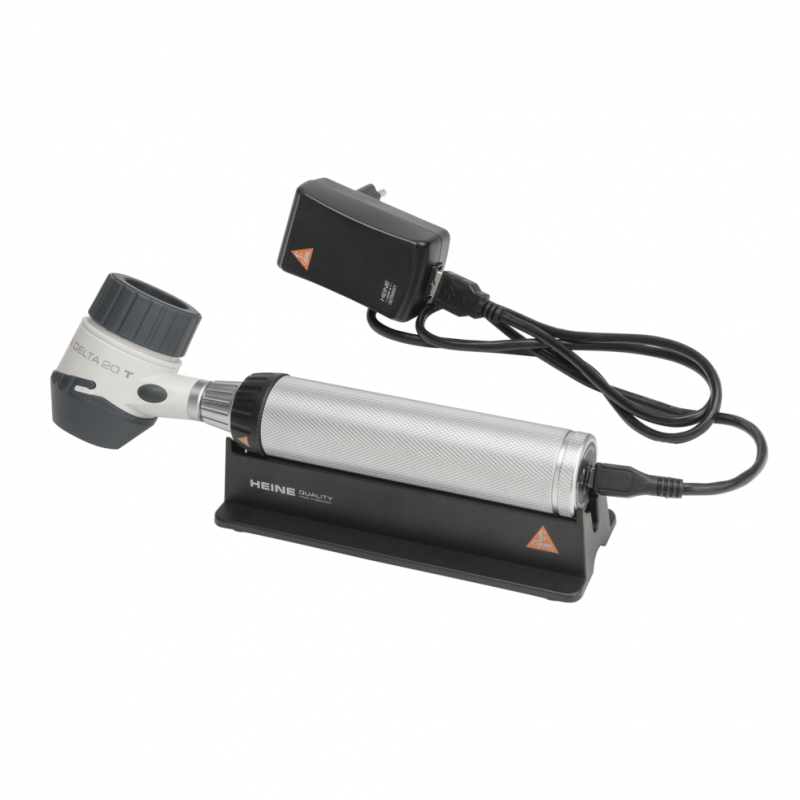

HEINE DELTA 20 T DERMATOSCOPE WITH LEDHQ ILLUMINATION

HEINE DELTA 20 T allows dermatoscopic analysis for the early diagnosis of malignant melanomas, non-melanocytic lesions, basal cell carcinomas and dermatofibromas using immersion liquid and polarized light examinations.

By simply pressing a button on the head, it is possible to switch from polarized to non-polarized display, without replacing the contact plate.

HEINE LEDHQ technology allows a homogeneous light of the entire field of vision and a color rendering with indices very close to natural light.

The HEINE high-quality and precision achromatic optical system provides a very sharp, high-resolution image.

With the focusing system you get a magnification of 10 to 16 times for a detailed view of even the smallest structures.

Thanks to the soft eyepiece, which does not scratch the glasses, it is possible to fine-tune the focus with a correction range from -6 to +6 diopters.
Equipped with contact plate with millimeter scale with a diameter of 23 mm.

Optional 8 mm contact plate, specific for difficult to access lesions.

HEINE DELTA 20 T allows you to digitally document exams, connecting to digital SLR cameras of major brands on the market, using a special optional HEINE lens adapter, specially designed to integrate with camera optics.

Complete with:

-contact plate with millimeter scale.
-BETA4 USB rechargeable handle, with USB cable and mains power supply.
-bottle of 10 ml. of oil for dermoscopy.
-compendium of dermatoscopy.
-hard case.

Functions:

-toggle to switch between polarized and non-polarized examinations for diving examinations.
-LEDHQ illumination for homogeneity and optimal color rendering.
-typical color temperature 5000 K and CRI> 80.
-focusing and magnification system from 10 to 16 times.
-precision optics for sharp, high-resolution images, even of the smallest structures.
-digital documentation capability by means of a system for connection to reflex-type digital cameras.

Power supply: With rechargeable battery

Head size: 32 (W) x 54 (H) x 47 (D) mm

Weight: 250 g
