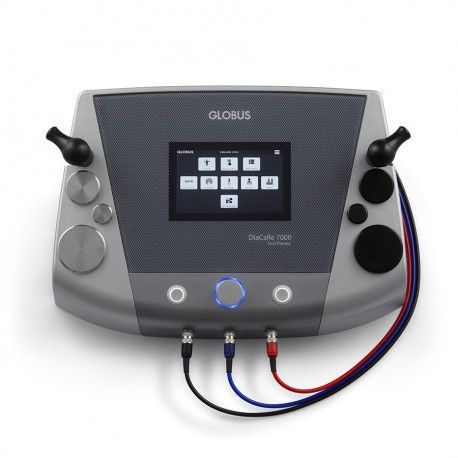

GLOBUS DIACARE 7000 TECAR THERAPY WITH COLOR TOUCH SCREEN SCREEN View larger
Previous Next

GLOBUS DIACARE 7000 TECAR THERAPY WITH COLOR TOUCH SCREEN SCREEN

Product ID: 5957

13 107,44 €

+ wishlist

DiaCaRe 7000 is the most comprehensive, powerful and versatile machine in the range of diathermy machines.



DiaCaRe 7000 operates in capacitive and resistive mode for the treatment of pain and both chronic and acute disorders of osteoarticular and muscular system.



The principle on which it is based is that of endogenous heat, produced with high frequency currents, which heal your body using your internal energies and the natural self-regeneration mechanisms of tissues and muscles.

SPECIAL FEATURES
-RESISTIVE
-CAPACITIVE
-BIPOLAR
-PRESET PROGRAMS
-ATLAS
-MULTIFREQUENCY
-FREE HANDS
-AUTOMATIC FREQUENCY SCANNING
-TRANSDERMAL DELIVERY
-AUTOMATIC APPLICATION MODE
-ATHERMY TREATMENTS
-PULSED TREATMENTS



HUMAN ATLAS
Browse the ATLAS and chooe the pathology you want to treat.
You will find all the different parts of the human body, the list of pathologies and the treatment parameters.



PRE-SET PROGRAMS
-BONE AND ARTICULAR PATHOLOGIES
-PATHOLOGIES OF TENDONS AND LIGAMENTS
-MUSCULAR AND SOFT TISSUE PATHOLOGIES
-VASCULAR AND LYMPHATIC PATHOLOGIES
-PATHOLOGIES OF THE NERVOUS SYSTEM



HANDS-FREE REDOUBLE THE THERAPEUTIC POSSIBILITIES
The HANDS-FREE mode requires the use of two or more fixed electrodes positioned on the treated zone.

In this way the therapist can treat the patient also manually in order to increase the treatment effectiveness.



FROM PAIN TO HEALTH IN A WHILE
GLOBUS DIATHERMY is very effective and comfortable.

Extraordinary results even with short treatment cycles.

Therapeutic effects can be felt right from the first session.

 CAP&RES EQUIPMENT

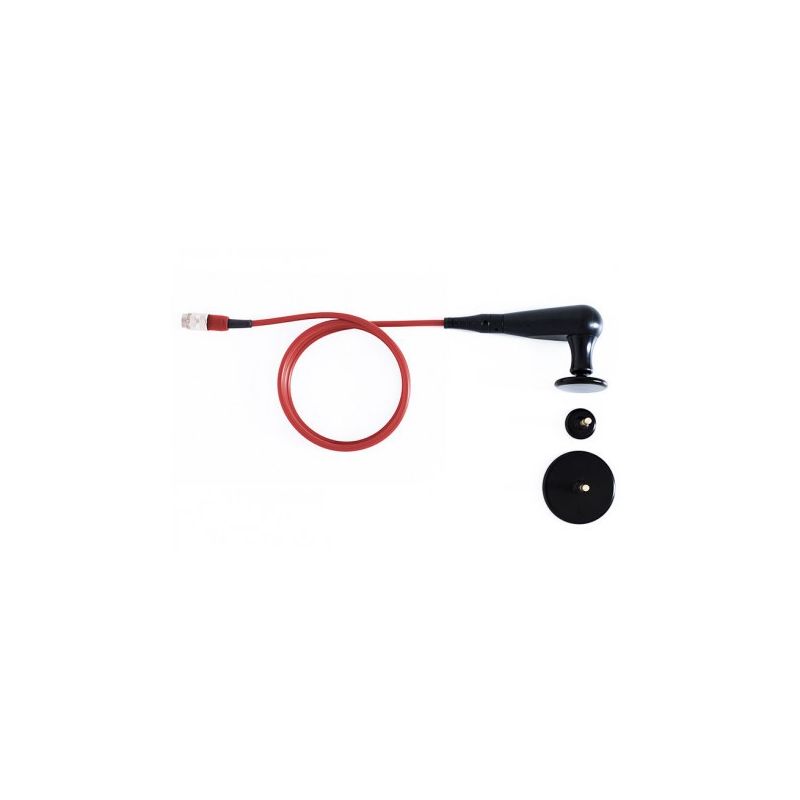

1 Monopolar resistive handpiece with 3 heads (Ø mm 30, 50, 70)

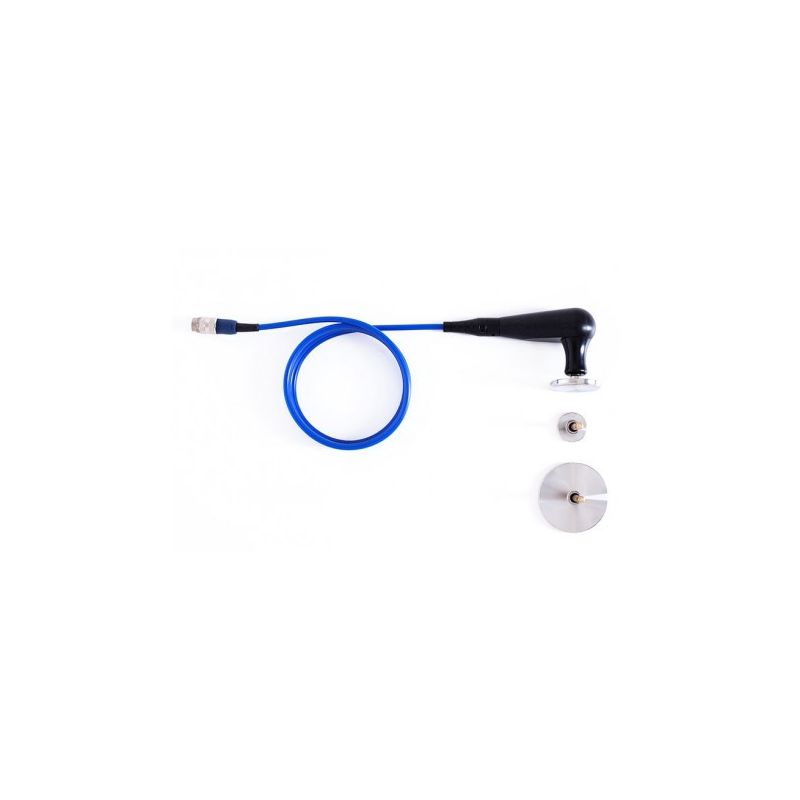

1 Monopolar capacitive handpiece with 3 heads (Ø mm 30, 50, 70)

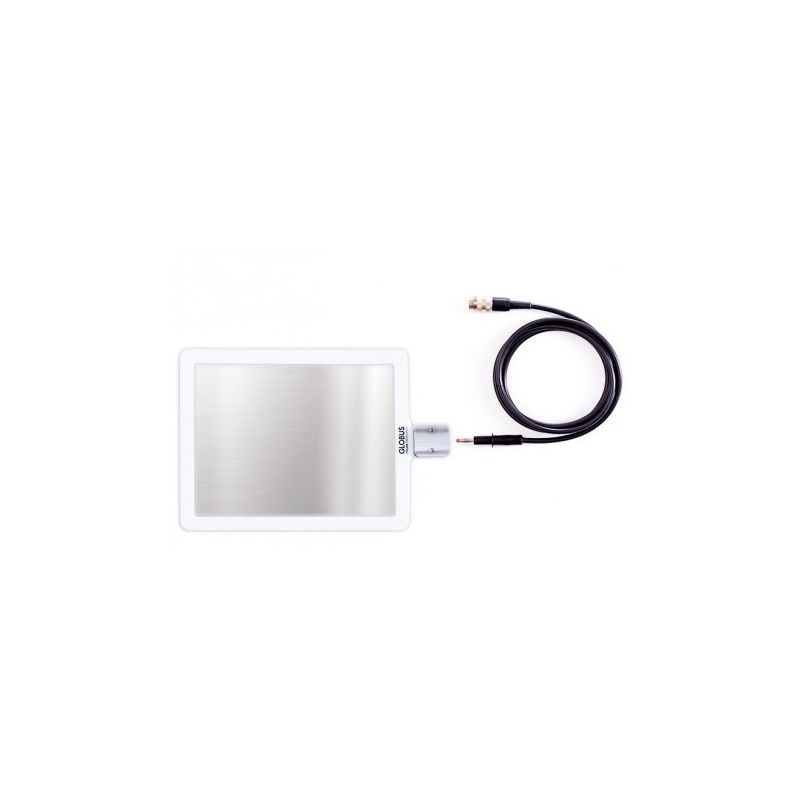

1 Counter electrode (plate)

HANDS-FREE KIT

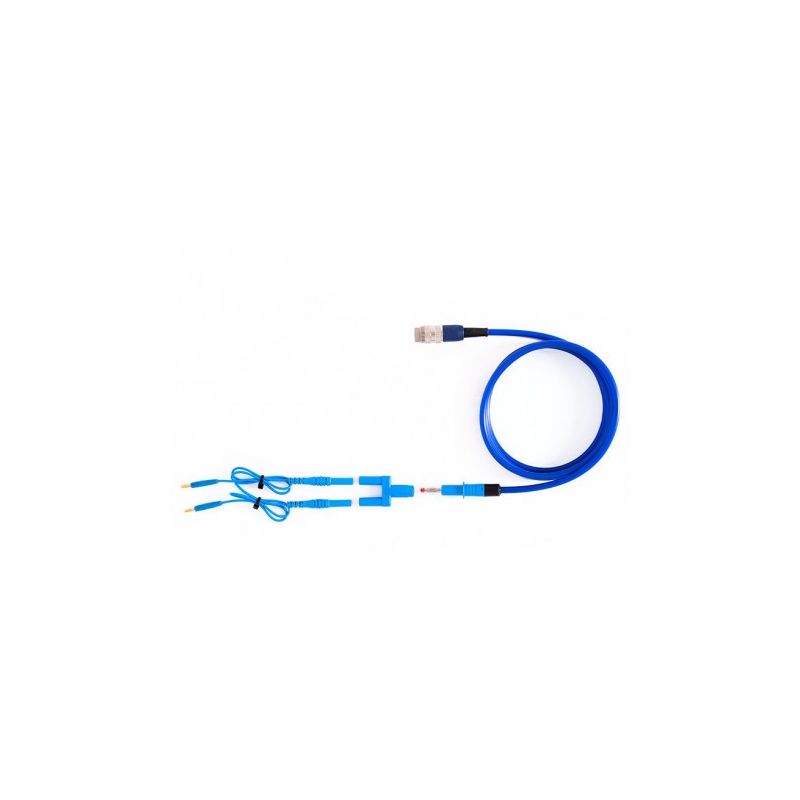

1 Resistive cable with 2 electrode connectors

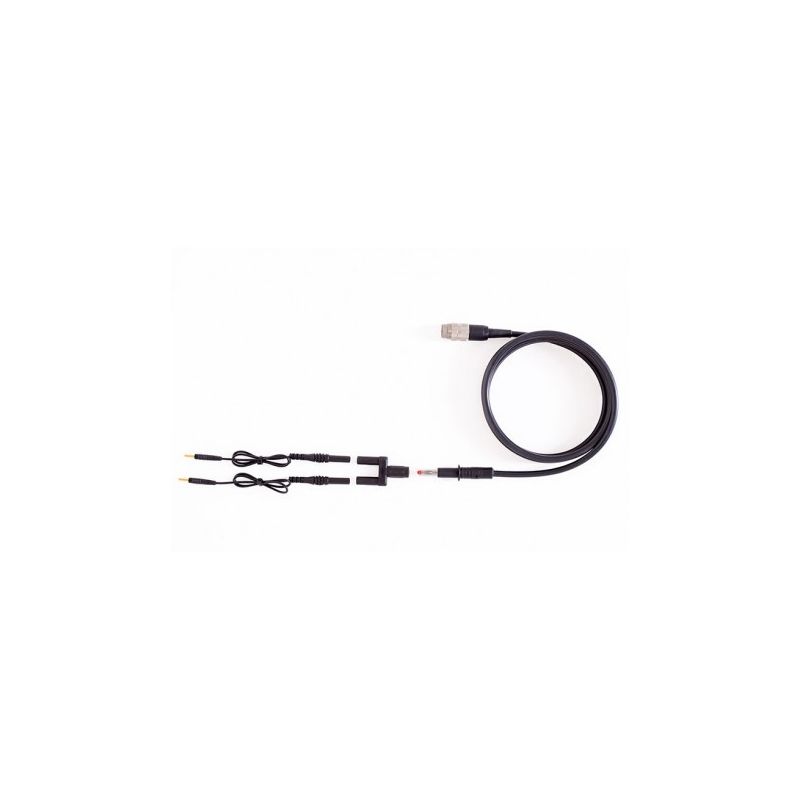

1 Neutral cable with 2 electrode connectors

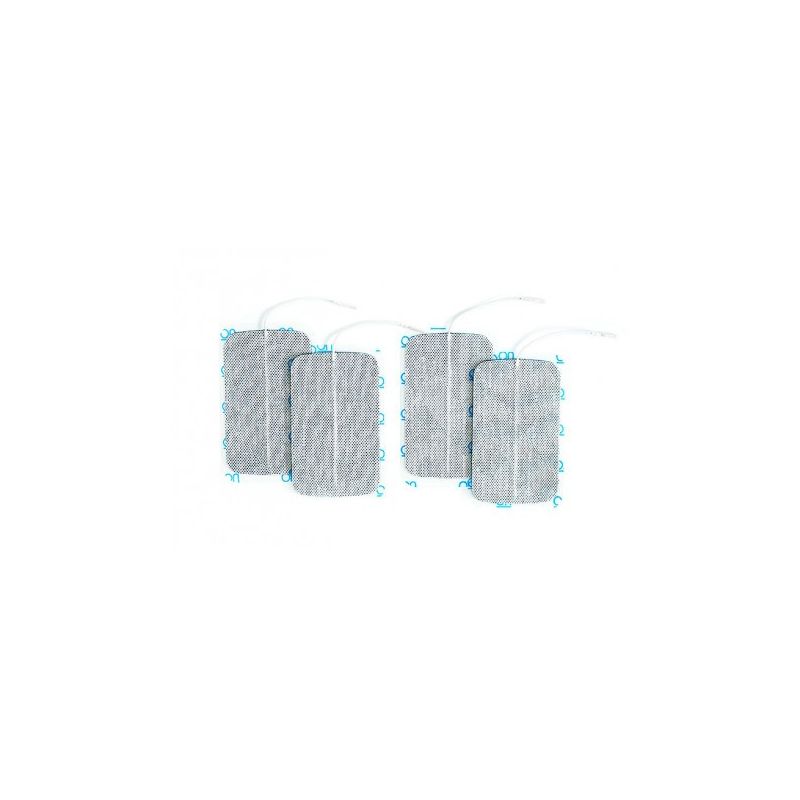

4 Adhesive electrodes


BIPOLAR HANDPIECE & MORE

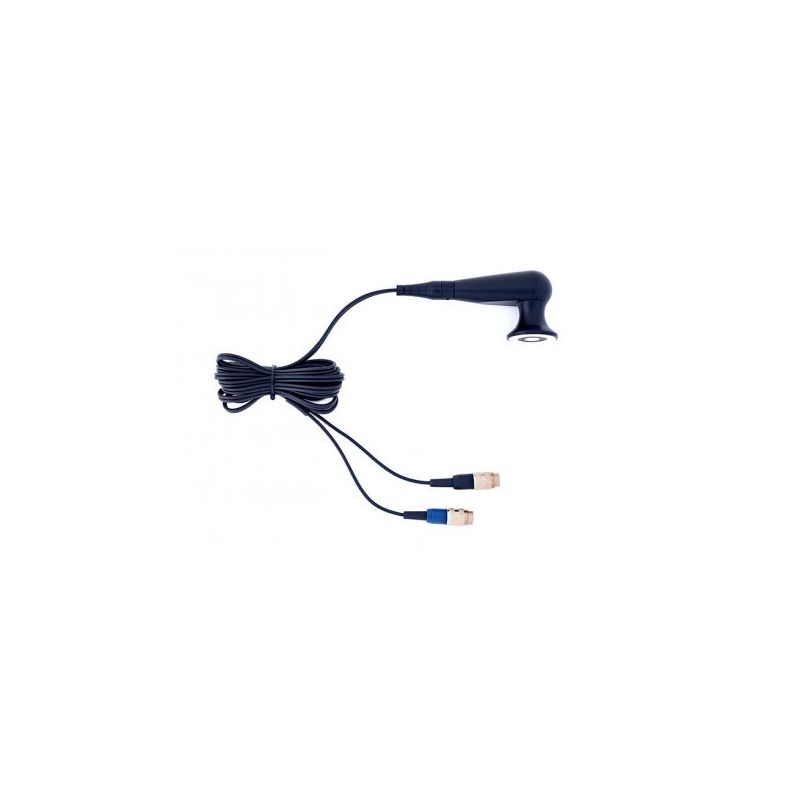

1 Resistive Bipolar handpiece Ø (mm 50)
2 Elastic Bands for fixing the electrodes
1 Power Cable




TECHNICAL FEATURES
Display: Size 7” color touch screen display
Power: 350W ±10%
Outputs: 2
Emission Frequency: 400kHz, 470kHz, 700kHz, 1000kHz, 1200kHz, ± 10%
Treatment modality: Capacitive and resistive
Capacitive electrodes: 3 size (Ø mm 30, 50, 70)
Resistive electrodes: 3 size (Ø (mm 30, 50, 70)
Mains supply: 100-240V AC, 50-60Hz, 1.8A
Size:mm 515x340X170
Weight: gr 10000




EQUIPMENT

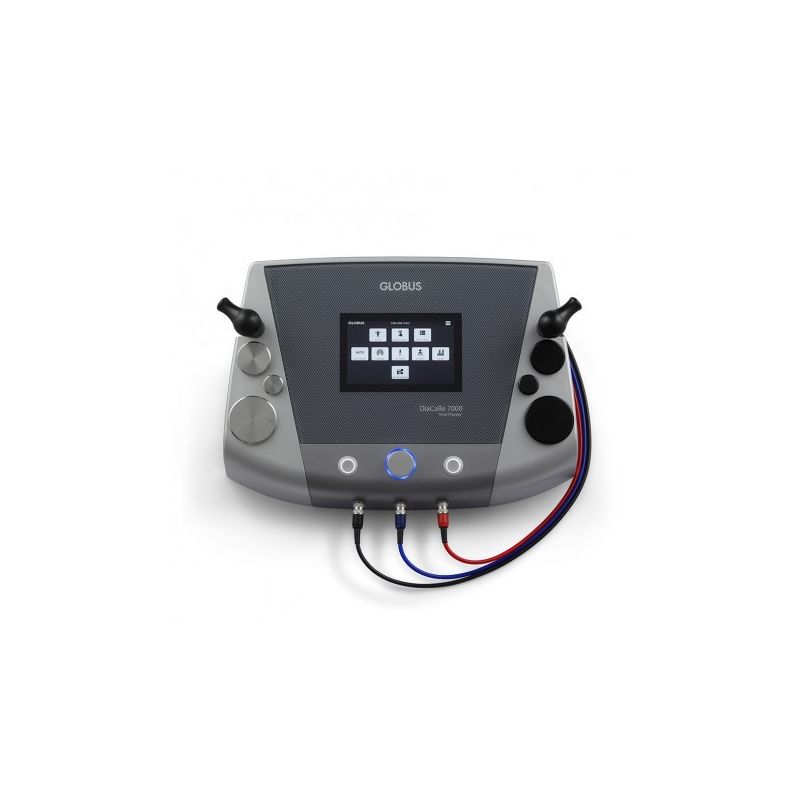

1 DIACARE 7000 tecartherapy unit
1 Counter electrode (plate)
1 Monopolar resistive handpiece with 3 heads (Ø mm 30, 50, 70)
1 Monopolar capacitive handpiece with 3 heads Ø (mm 30, 50, 70)
1 Bipolar handpiece Ø (mm 50)
1 Kit for automatic treatment
1 Cream can ml 1000
1 Power supply unit
1 Operating manual
