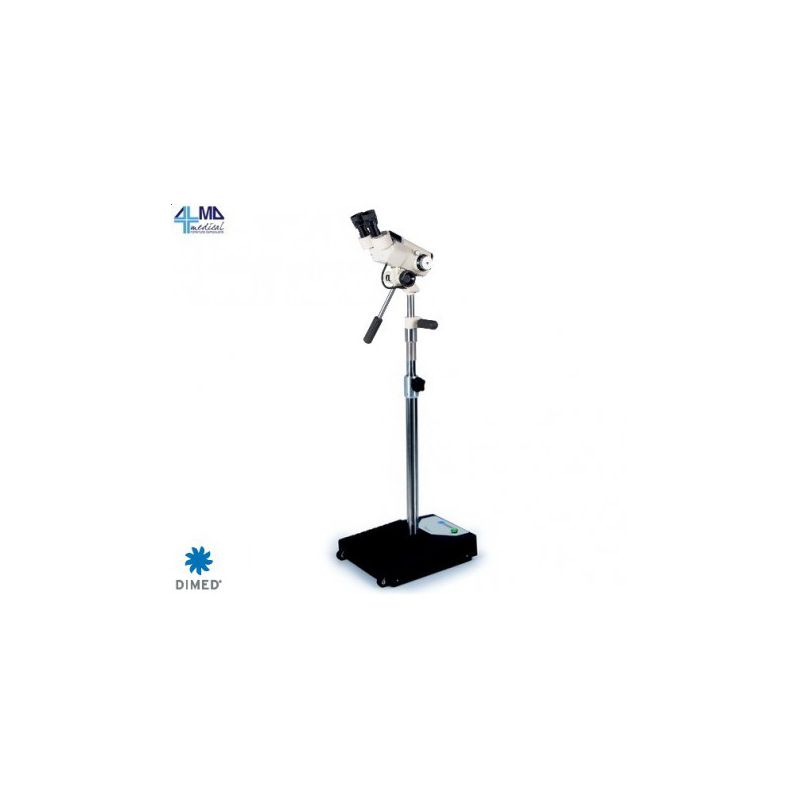

MORETTI VENUS 6.3 COLPOSCOPE - 3 MAGNIFICATIONS - INCLINED OPTICS

Product ID: 3074

The LTD632 colposcope, with an easy-to-use tilted optics, offers 3 levels of magnification (3.75X-7x-15x).

More details

3 589,99 €

Quantity:

+ wishlist

More info

The LTD632 colposcope, with an easy-to-use tilted optics, offers 3 levels of magnification (3.75X-7x-15x).
The 15X magnification, combined with the 10,000 LUX light source, allows you to examine details of the fabrics that would otherwise be impossible to grasp.
The support rod rests on a spherical Teflon® base that allows simple 360 ° circular movements for an initial focus adjustment.

Technical features
- Eyepieces: 12.5 x individually adjustable
- Interpupillary distance: 50 ÷ 78mm
- 3x magnification head: 3.75x, 7x, 15x
- Working distance: 300mm
- Field of view: 30.93mm, 15.50mm, 7.74mm Ø
- Depth of field: 18mm, 4mm, 2mm
- Light intensity:> 10,000 LUX
- Brightness intensity: adjustable
- Reference circles for dimension analysis of the displayed part
- Green filter to increase the user-selectable built-in contrast
- Lighting: 5.9V / 5W LED light White color
- Easily replaceable LED bulb
- 2 handles: for adjusting the focus (Coarse-Fine)
- 2 handles: for height adjustment (Coarse-Fine)
- Power supply: 230V
- The unit is fully assembled and ready for use once the ON button is turned on

Dimensions: L: 36.5 D: 31.8 H: 83 to 119 cm
