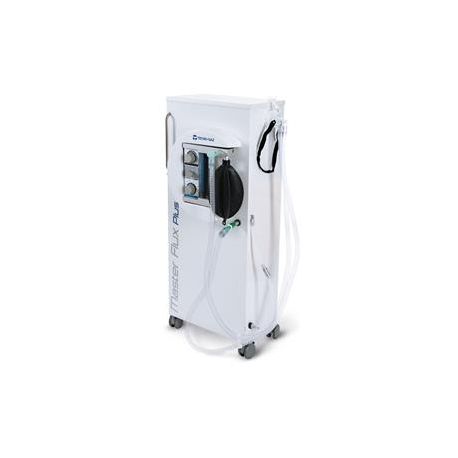

TECNO-GAZ SEDATION DEVICE WITH AUTOMATIC FLOW CONTROL - MASTER FLUX PLUS MOBILE

Analgesia has been a widespread technique for years in the United States, Canada and several European countries.
The controlled administration of oxygen and nitrous oxide by inhalation induces a sense of relaxation, reducing the emotional charge, the perception of pain and the anxious state, increasing the manageability of the patient and facilitating his collaboration with the doctor, while keeping them unchanged. the tutelary reflexes.
It is good to remember that sedation does not produce side effects and has only generic contraindications.

Pedodontics

It is known that children are the subjects who suffer most from the problem of "dental anxiety", which often results in the most complete non-cooperation.
Dentistry will thus have to face inconvenience and waste of time.
Sedation solves this problem by saving time and facilitating the work of the operators.
New masks available in size 1 - 2 - 3 - 4 (n ° 4 optional) for use on adults and in pediatric dentistry.

Handicapped people

Some categories of handicapped people are often unable to undergo outpatient dental care.

Sedation in some cases radically solves this problem.

Implantology

This widely used technique "forces" the patient to long intervention times, which produce moments of stress, which sometimes lead to "non-cooperation", precisely in the topical moments, sedation helps to face all phases of the intervention in a serene and collaborative.

Dental phobias and other everyday situations

The problem of dental phobias is also widespread in adults and this distances them from dental offices. There are also situations of daily interventions, such as taking impressions, the ablation of tartar, which often cause unwanted problems. Sedation solves all these problems, "bringing" the patient closer to dentistry. The greatest benefit is certainly reserved for operators, who can operate peacefully, without stressful situations and considerable time savings.

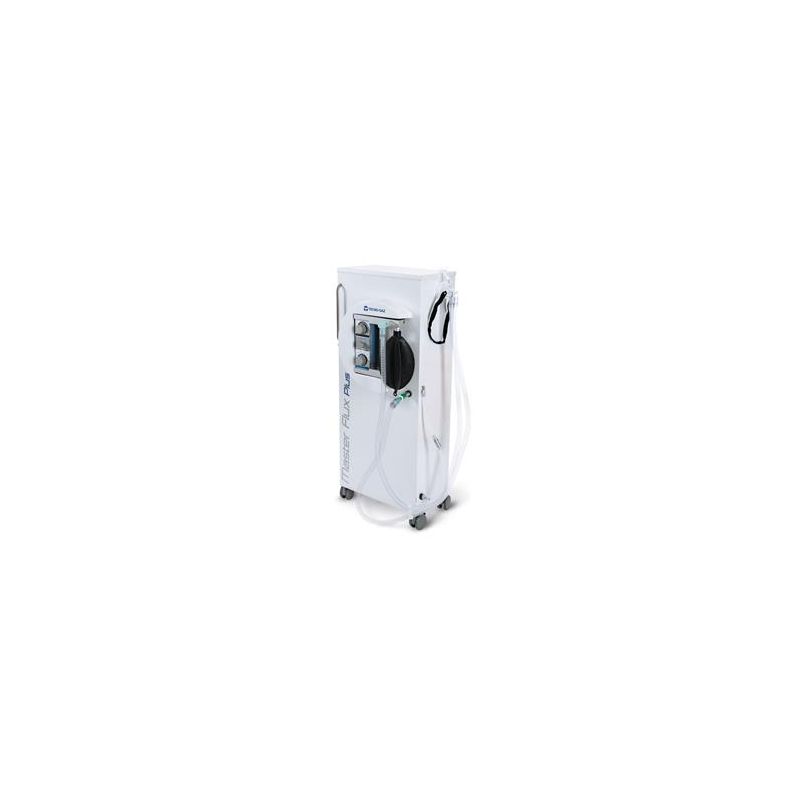

Sedation device with automatic flow control. Master Flux Plus is the only sedation device entirely designed and manufactured in Italy.

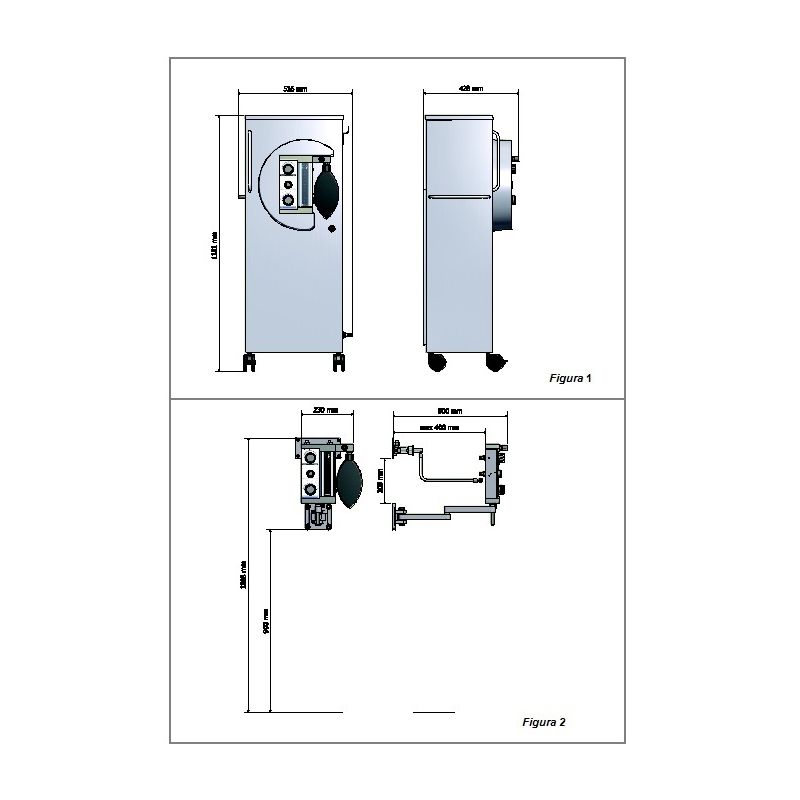

All the details are produced by Tecno-Gaz and undergo a scrupulous individual control. To avoid a negative visual and psychological impact for the patient, an elegant piece of furniture has been adopted that can contain oxygen and nitrous oxide cylinders with related reducers and attachments. The cabinet is RAL 9002 color, equipped with wheels, laminated instrument holder surface and inside there is a compartment designed for 5 and 5 liter cylinders. 10. On the front there is the housing for the metric flow box complete with accessories. Master Flux Plus has passed the tests required by the EC directives.

Master Flux Plus comes with:

• flow meter box

• breath control bag

• 1 circuit with autoclavable mask size 1
• 1 autoclavable mask size 2
• 1 autoclavable mask size 3

• 1 OX reducer with hose and connection

• 1 N2O reducer with hose and connection

The flow meter box is a sophisticated mechanical engineering project with an automatic proportioner dispensing system.

The mechanical method was chosen as gas management is “direct” therefore it is not subordinate to other electronic or electrical “controllers”. We have thus obtained a product of high precision, very reliable and easy to use. Easy to use, the Master Flux Plus has technical features that make it extremely versatile with effective safety devices that absolutely do not allow you to make mistakes and therefore negatively affect the patient. The silkscreen design is simple and easy to read.

Securities

• Blocks the N2O flow when the O2 pressure is zero (lack of oxygen)

• Minimum concentration of oxygen. Oxygen is always present in the percentage of 30%, thus avoiding the dangers of HYPOXIA and ANOXY.

• A special valve prevents exhaled gases from returning to the circuit. In addition, a special device allows you to breathe ambient air in the event of a lack of gas.

O2 emergency

By pressing the O2 device, we block the flow of N2O by delivering 100% oxygen to both the control balloon and the patient being treated.

Automatic flow regulation

The system has been studied in order to make the administration of the flows simple and fast. With the 2 knobs I can adjust the gas supply:
O2: regulation of the amount of oxygen breathed by the patient in liters per minute
N2O: adjustment of the quantity of nitrous oxide in the desired percentage from 0 to 70%
The flow meter box allows you to mix the combined delivery of the 2 gases to achieve patient sedation.

Flow columns

The columns indicating the flows are built to obtain an easy and quick reading of the values.

Power couplings

The couplings are mounted on the back of the flow meter box and have different connections, to avoid the possibility of exchanging the two gas pipes. A further precaution that allows to increase the safety of the equipment.

Intelliflux circuit
The most difficult aspect of modern conscious sedation in dental practices is the last mile, that is the means through which the mixture is administered to the patient (the circuit with mask)

TG wanted to fill the void left by poor performance on the last mile, producing an "adaptive" circuit with excellent performance

The main need of the dentist practicing Conscious Sedation is to obtain a good performance in order to put the patient at ease.

Fundamental aspects are:
1-GUARANTEE THE OPERATOR GREAT CLINICAL ERGONOMICS
2-MAKING THE TREATMENT PLEASANT FOR THE PATIENT
3-OBTAIN A QUICK AND EFFECTIVE SEDATION
4-AVOID GAS DISPERSION IN THE ENVIRONMENT

1-ERGONOMICS:
4-HAND WORK ALLOWED
CIRCUIT JOINT PLACED ABOVE THE PATIENT HEAD THAT AVOID IMPEDIMENTS (POSSIBILITY OF MOVING THE JOINT AS YOU LIKE)

2-PLEASANT TREATMENT:
THE SEDATED PATIENT IS IN A WELL-BEING STATE
ADAPTIVE MASK THAT LEAVES NO SIGNS
FRONT SUPPORT AND NUCAL ELASTIC FOR STABILITY

3-QUICK AND EFFECTIVE SEDATION:
MASK THAT SEALS PERFECTLY TO EVERY CONFORMATION OF THE FACE

4-NO GAS DISPERSION INTO THE ENVIRONMENT
VALVE NOT RETURN
JOINED SUCTION CONNECTION
ADAPTIVE MASK

Today with the circuit and adaptive masks we get greater control and better performance on the administration of the gas mixture
ADVANTAGES:
• No dispersion of Gas into the environment
• Best fit on any type of face
• Greater comfort for the patient and the operator.

MAIN FEATURES OF THE TG CIRCUIT

- Back support elastic for better fixing of the mask to the patient's face.

-Adaptive mask with silicone profile ideal for any type of face + Front support. No signs and great comfort.

-Connection with non-return valve to avoid dispersions and increase and speed up the sedation performance.

-Rear Unit Headboard Block. The dentist works peacefully and without thoughts on patient positioning.

- Passage of gas pipes over the patient's head

AVAILABLE ACCESSORIES :

TECNO-GAZ COMPLETE RESUSCITATION KIT FOR MASTER FLUX PLUS
