Magneto Base Plus is an ELF low frequency magnetotherapic unit designed for domiciliary applications.
The most important effects of the magnetic fields are: Antiedemigen / Analgesic / Antiphlogistic / Regenerative and have applications in: traumatology, rheumatology, angiology, neurology, dermatology, endocrinology.
The magnetic field produced is impulsive. The internal generator produces square waveform electrical current with frequency varying from 10 to 99 Hz and impulse time varying so to obtain a field's intensity determinated from 10 to 80 Gauss.
Internal sound sensor of magnetic field and safety system in case of short-circuit. Two transducers can be connected at the same time (the field produced by each transducer is half of the total).
• Waveform: square • Max. ratio emission/pause: 50% • Selectable magnetic field from 10 to 80 Gauss • Selectable frequency: from 10 to 99 Hz. • Intensity of magnetic field: 80 Gauss (8mT) • Operating voltage: 230 V/50-60 Hz • Size: 193 x 138 x h 68 mm • Weight: 1 kg • Safety class: II BF - Norms: EN60601-1 (CEI)

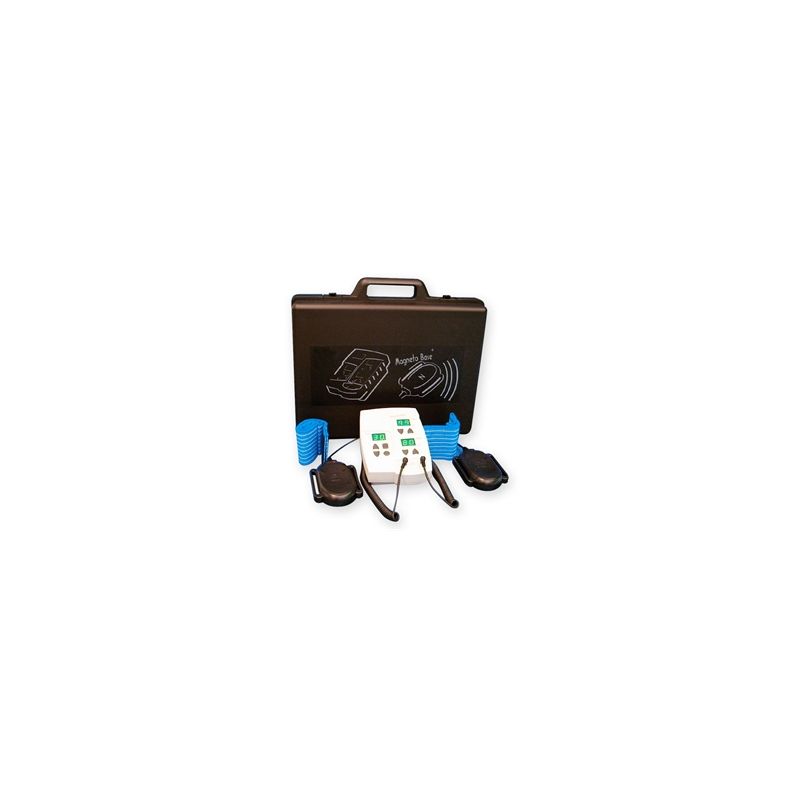

• Power cable • 2 plate transducers 80 Gauss - 120 x 70 mm • 1 velcro elastic band 60 x h 8 cm • 1 velcro elastic band 100 x h 8 cm • ABS carrying case • Manual: GB, IT
