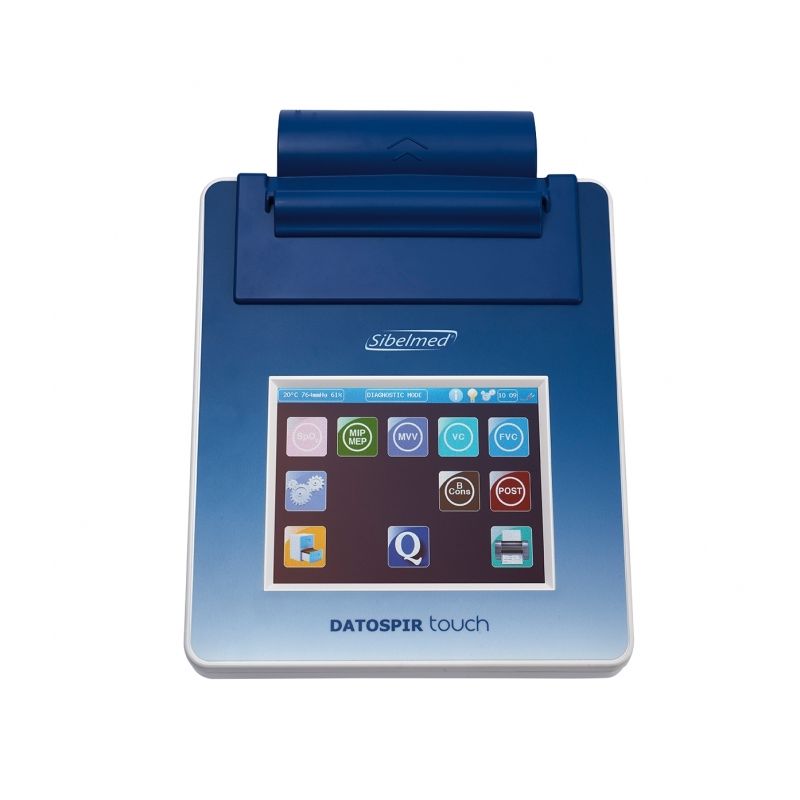

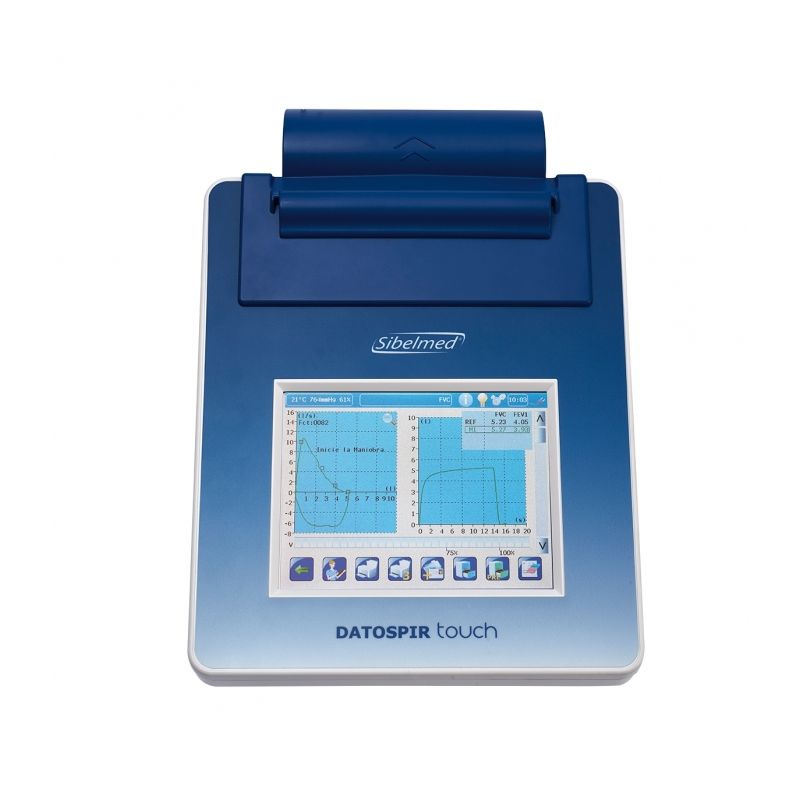

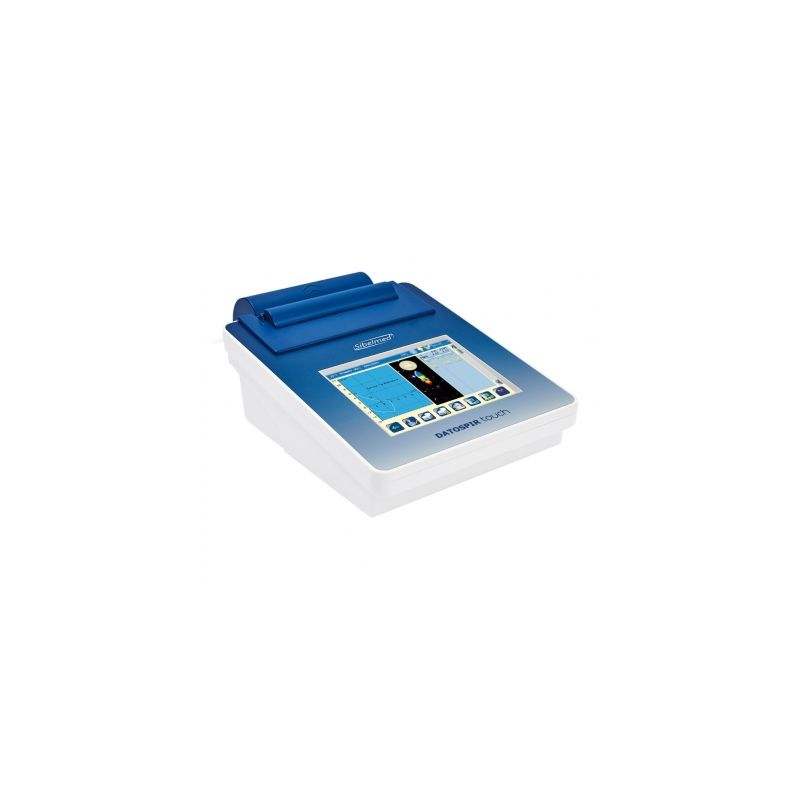

INTERMED SPIROMETER DATOSPIR TOUCH DIAGNOSTIC - DIFFERENT MODELS

Product ID: 5451

Desktop computerized spirometer for the diagnosis of respiratory diseases such as ASTHMA and chronic obstructive pulmonary disease COPD, available in versions with disposable Lilly transducer and turbine transducer.

More details

2 096,99 €

Quantity:

Measure :

+ wishlist

More info

Computerized desktop spirometer for the diagnosis of respiratory diseases such as ASTHMA and chronic obstructive pulmonary disease COPD, available in versions with disposable Lilly transducer and turbine transducer.

It is equipped with a large high-resolution color touchscreen display and an internal thermal printer to document spirometric tests even without the aid of software.

In addition, it can incorporate a weather station to measure pressure and humidity, a MIP-MEP module to measure maximum inspiratory and expiratory pressures and a pulse oximetry module.

It allows you to perform interactive tests in real time on the PC and transfer data on the status of the device.

The spirometer can be connected in real time or deferred to a PC via USB or Bluetooth, using the W20s spirometry software to perform tests, which allows you to transfer the results from the device to permanent records, print hard copies of selected data or transfer tests to telemedicine platforms or clinical information systems.

The configuration of the device and the included software provides for application in two operational fields, Primary Health Care or Occupational Medicine. With an optional module it is possible to enable the instrument for use in lung function laboratories.

Compliant with ERS / ATS regulations.

FEATURES

USB and Bluetooth connectivity (optional);

Temperature sensor integrated in the instrument;

Main power supply and rechargeable battery.

MODEL: DATOSPIR SPIROMETER TOUCH DIAGNOSTIC D

Disposable Lilly Flow Transducer
Useful life of the transducer 3 years
Volume resolution <10ml
Measurement range (BTPS) flow: from 0 ± 16 l / s - Volume: from 0 to 10 l
Accuracy (BTPS) volume: 3% or 50ml - flow: 5% or 200ml / s - PEF: 10% or 300ml / s (ATS / ERS) 10% or 170ml / s (EN ISO 23747: 2015)
High resolution VGA color touchscreen display, 640 x 480 pixels and 5.7 "
Interoperability Compatible with HL7
Power supply 2 AAA alkaline batteries or 2 AAA rechargeable NiMH 1.2 V 800 mAh batteries or through the USB port when connected to the computer.
Dimensions 195 x 270 x 100 mm
Weight 1.7 kg

MODEL: DATOSPIR SPIROMETER TOUCH DIAGNOSTIC T

Bidirectional volumetric turbine flow transducer
Useful life of the transducer 1400 disinfections or 3 years
Volume resolution <10ml
Measurement range (BTPS) flow: from 0 ± 16 l / s - Volume: from 0 to 10 l
Accuracy (BTPS) volume: 3% or 50ml - flow: 5% or 200ml / s - PEF: 10% or 300ml / s (ATS / ERS) 10% or 170ml / s (EN ISO 23747: 2015)
High resolution VGA color touchscreen display, 640 x 480 pixels and 5.7 "
Interoperability Compatible with HL7
Power supply 2 AAA alkaline batteries or 2 AAA rechargeable NiMH 1.2 V 800 mAh batteries or through the USB port when connected to the computer.
Dimensions 195 x 270 x 100 mm
Weight 1.7 kg
