SPIROLAB COLOUR SPIROMETER WITH 7" TOUCHSCREEN, SPO2, PRINTER, SOFTWARE View larger

SPIROLAB COLOUR SPIROMETER WITH 7" TOUCHSCREEN, SPO2, PRINTER, SOFTWARE

Product ID: 6047

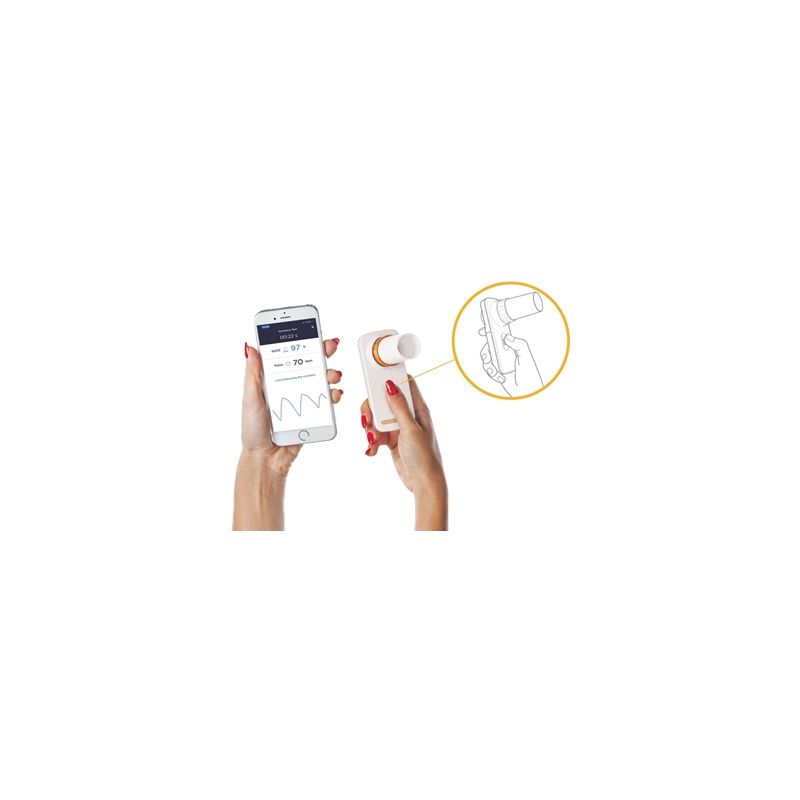

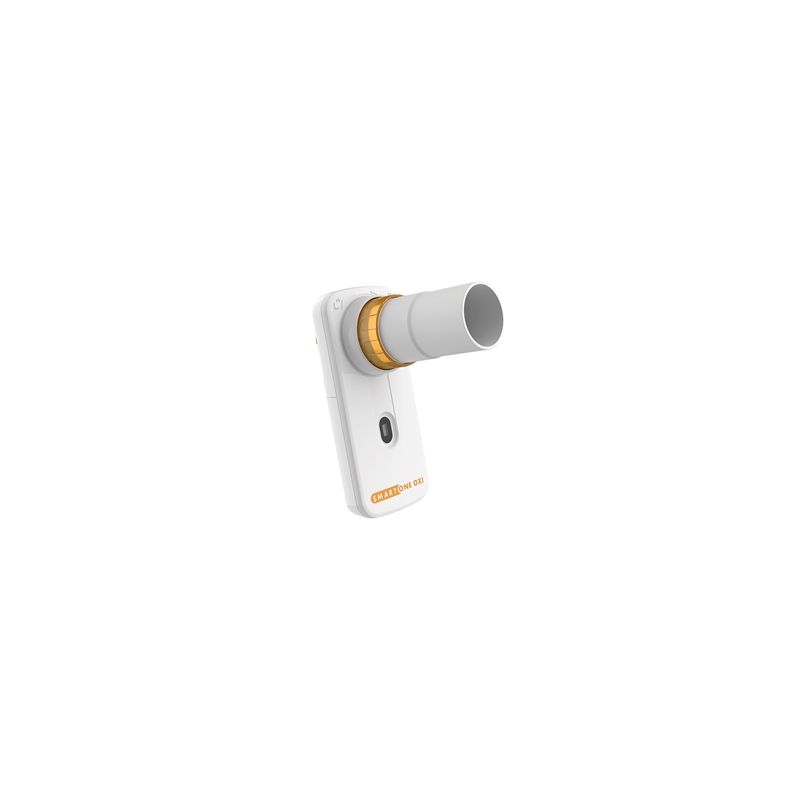

Small and light personal spirometer, Smart One Oxi Peak Flow measures: peak flow, FEV1, SpO2 and BPM. It can be connected via Bluetooth 4.0 to your smartphone.

More details

206,99 €

+ wishlist

GENERAL INFORMATION

Small and light personal spirometer, Smart One Oxi Peak Flow measures: peak flow, FEV1, SpO2 and BPM. It can be connected via Bluetooth 4.0 to your smartphone.

Smart One Oxi represents a step forward in self-management and monitoring of health conditions, combining spirometers and oximetry together with an innovative SpO2 touch sensor.

The Smart One app is available for both iOS and Android with unlimited free updates.

Automatic Pair and Play

Automatic pairing via Bluetooth. Test results in real time on smartphones and tablets

Mobile app included

Intuitive app for self-management of cardiorespiratory conditions, always included for iOS and Android



Measured parameters

• Spirometric parameters: PEF, FEV1

• Oximetry parameters: SpO2min, SpO2mean, SpO2max, BPMmin, BPMmean, BPMmax, Ttotal



ATS / ERS 2019 compliance

Plus additional standards including ISO 26782, ISO 23747, ISO 80601-2-61 and much more.



Medical report

Ability to share with anyone at any time via e-mail, Whatsapp, SMS, Cloud, Drive and other apps.



External control

Plethysmographic curve and test results in real time on smartphone / tablet screen. No internal memory, no display. The data is not saved in the device memory.

Standard equipment

• 2 AAA 1.5V alkaline batteries

• Smart One App user license

• Single patient use reusable turbine

• Reusable plastic mouthpiece

• User manual



TECHNICAL INFORMATION



Technical specifications

• Dimensions: 49 x 109 x 21 mm

• Weight: 60.7g (including batteries)

• Turbine: single-patient reusable with mouthpiece (MIR code 910013)

• Mouthpiece: 30 mm in diameter

• Power supply: 2 AAA 1.5V batteries

• Consumption: max 12 mA

• IP protection level: 22

• Connectivity: Bluetooth 5-ready

• Type of electrical protection: internal power supply

• Safety level for risk of electric shock: type BF

• Conditions of use: apparatus for continuous use



Spirometry

• Flow sensor: bidirectional digital turbine

• Flow range: 16 l / s (960 l / m)

• Volume range: 10 l

• Volume accuracy: ± 2.5% or 0.05 L

• Peak flow accuracy: ± 10% or 0.33 L / s

• Dynamic resistance: <cm H20 / L / s

• Temperature sensor: absent

• Available tests: peak flow

• Parameters measured: FEV1, PEF

• Memory capacity: data is stored in the remote device (smartphone / tablet)



Oximetry

• Measurement method: double wavelength

• Range: 70-100%

• Accuracy: ± 1.9%

• Average number of heartbeats for SpO2 calculation: 2 beats

• Heart rate range: 30-200 bpm

• Heart rate accuracy: ± 3%

• Average interval for pulse rate calculation: 12 seconds

• Signal quality indicator: 0-8 lines

• Available tests: spot

• Measured parameters: SpO2min, SpO2mean, SpO2max, BPMmin, BPMmean, BPMmax, Ttotal

• Wavelength sensors: red 660 nm, infrared 880 nm

• Max optical output power: 1.2 mW
