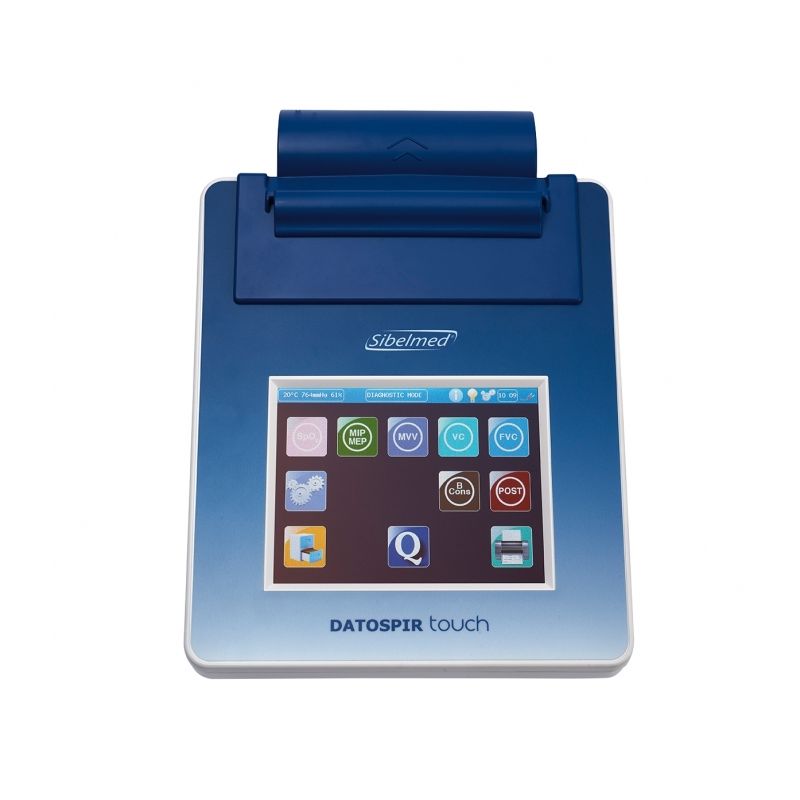

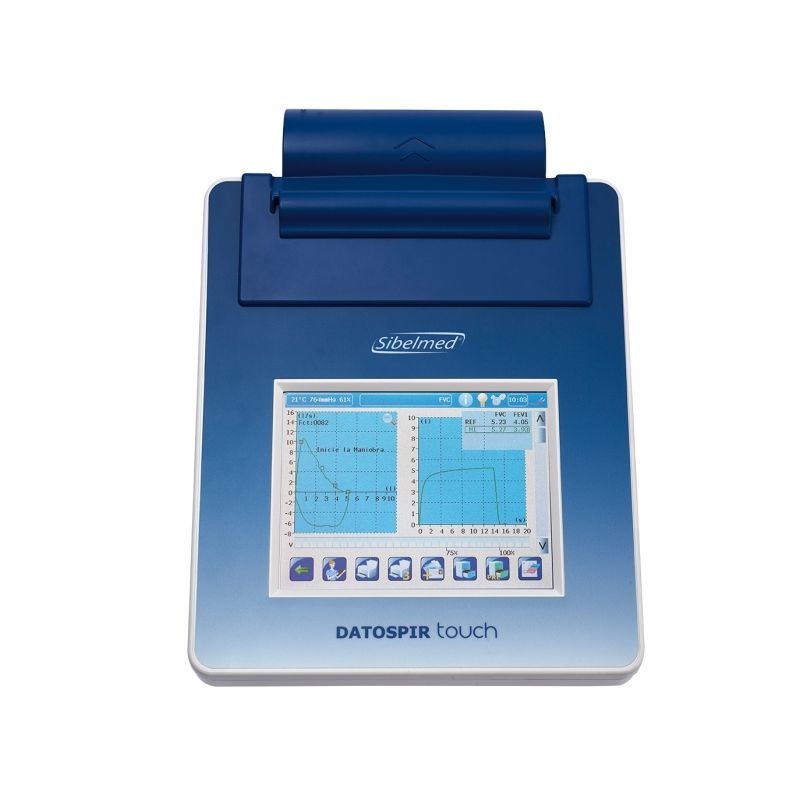

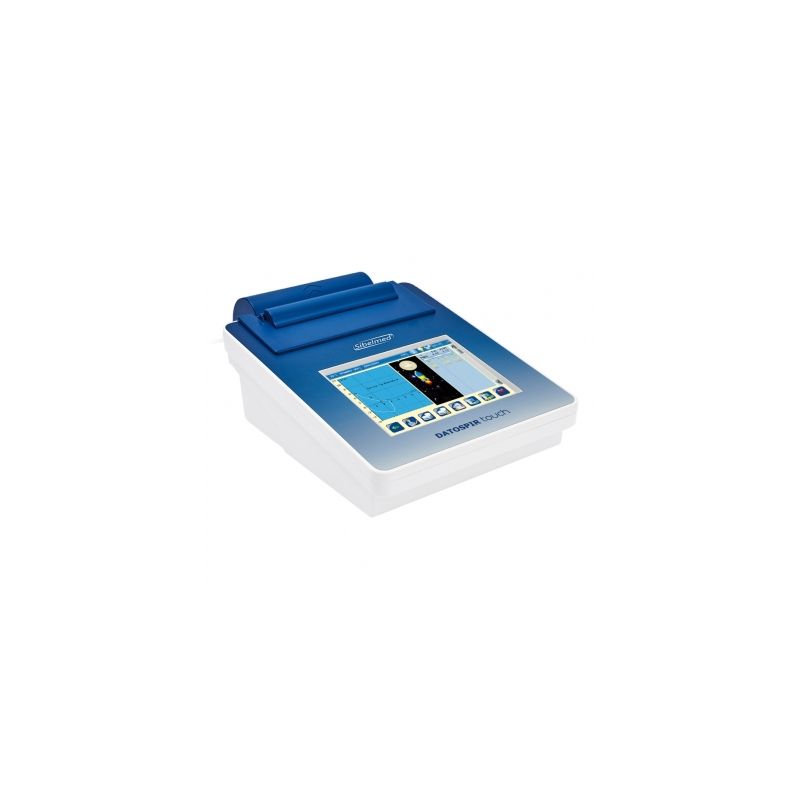

INTERMED SPIROMETER DATOSPIR TOUCH EASY-DIFFERENT MODELS

Product ID: 5450

Desktop computerized spirometer for the diagnosis of respiratory diseases such as ASMA and chronic obstructive pulmonary disease COPD, available in versions with disposable Lilly transducer and turbine transducer.

More details

1 921,99 €

Quantity:

Measure :

+ wishlist

More info

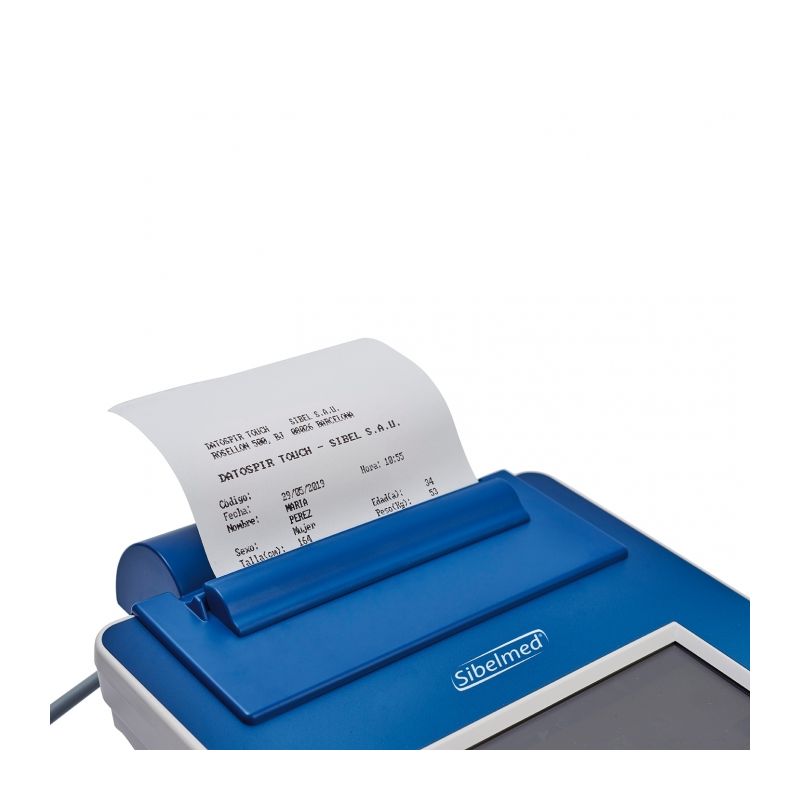

It is equipped with a large high resolution color touch screen and an internal thermal printer to document spirometric tests even without the aid of software. In addition, it can incorporate a meteorological station to measure pressure and humidity, a MIP-MEP module to measure maximum inspiratory and expiratory pressures and a pulse oximetry module. It allows you to perform interactive tests in real time on the PC and transfer data on the status of the device.

The spirometer can be connected in real time or deferred to a PC via USB or Bluetooth, using the W20s spirometry software for testing, allowing you to transfer the results from the device to permanent records, print hard copies of selected data or transfer evidence. to telemedicine platforms or clinical information systems.

The configuration of the device and the included software allows its application in two operational fields, Primary Health Care o Occupational Medicine.

With an optional module it is possible to enable the instrument for use in pulmonary function laboratories. Complies with ERS / ATS regulations.

CHARACTERISTICS

USB and Bluetooth connectivity (optional);
temperature sensor built into the instrument;
Main power supply and rechargeable battery.

DATOSPIR TOUCH EASY D SPIROMETER

Disposable Lilly flow transducer
Transducer life 3 years
Volume resolution <10 ml
Measurement range (BTPS) flow rate: 0 ± 16 l / s - Volume: 0 to 10 l
Accuracy (BTPS) volume: 3% or 50 ml - flow: 5% or 200 ml / s - PEF: 10% or 300 ml / s (ATS / ERS) 10% or 170 ml / s (EN ISO 23747: 2015)
High resolution 640 x 480 pixel 5.7 "VGA color touch screen
HL7 Compatible Interoperability
Power supply 2 AAA alkaline batteries or 2 AAA NiMH 1.2 V 800 mAh rechargeable batteries or via the USB port when connected to the computer.
Dimensions 195 x 270 x 100 mm
Weight 1.7 kg

DATOSPIR TOUCH EASY T SPIROMETER

Bidirectional volumetric turbine flow transducer
Transducer Life 1400 disinfections or 3 years
Volume resolution <10 ml
Measurement range (BTPS) flow rate: 0 ± 16 l / s - Volume: 0 to 10 l
Accuracy (BTPS) volume: 3% or 50 ml - flow: 5% or 200 ml / s - PEF: 10% or 300 ml / s (ATS / ERS) 10% or 170 ml / s (EN ISO 23747: 2015)
High resolution 640 x 480 pixel 5.7 "VGA color touch screen
Interoperability Compatible with HL7
Power supply 2 AAA alkaline batteries or 2 AAA NiMH 1.2 V 800 mAh rechargeable batteries or via the USB port when connected to the computer.
Dimensions 195 x 270 x 100 mm
Weight 1.7 kg
