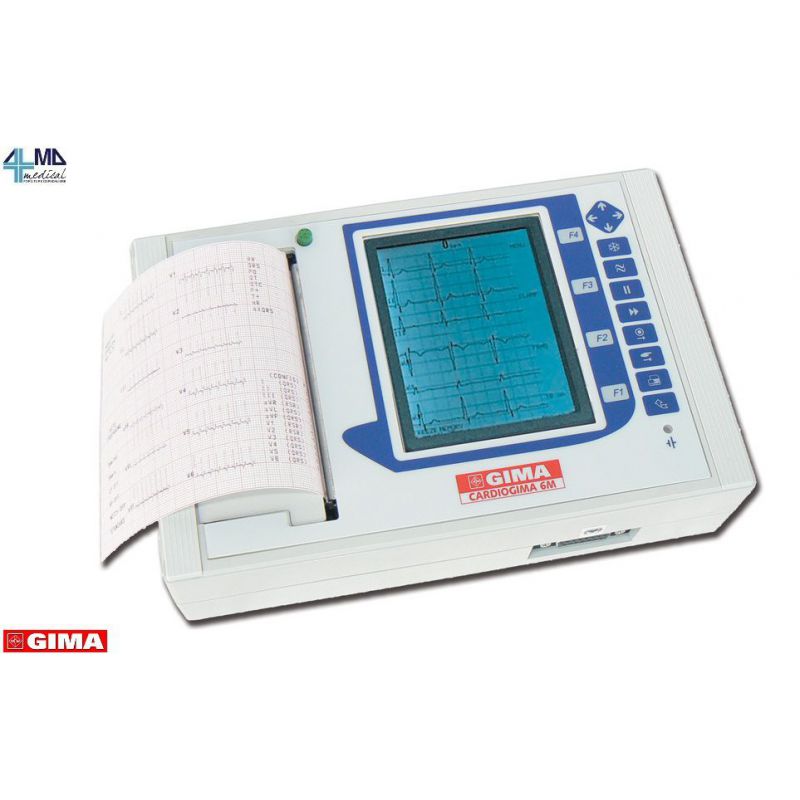

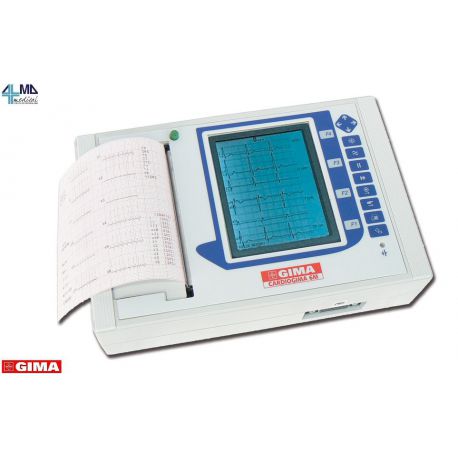

GIMA CARDIOGIMA 6M - 3-6 CHANNEL ECG WITH MONITOR AND INTERPRETATION View larger

GIMA CARDIOGIMA 6M - 3-6 CHANNEL ECG WITH MONITOR AND INTERPRETATION

Product ID: 2503

LCD monitor, 3-6-12 channels channels in Standard or Cabrera format with base line setting.

More details

1 784,99 €

+ wishlist

- LCD monitor, 3-6-12 channels channels in Standard or Cabrera format with base line setting
- High resolution thermal printer (8 dots/mm): hardcopy 3-6-12 channels real time with possibility to print a millimetric grid
- Manual or automatic recording
- Image freeze with memory scrolling for reviewing and hard copy of acquired signals (Memory 10 seconds for each lead)
- Digital filters for elimination of muscle tremors, power line and base line noises.
- Pacemaker detection
- Power supply by built-in high capacity Ni-Cd batteries and fast charging time
Technical Specifications
• Power supply: internal rechargeble Ni-Cd batteries
• AC/DC adapter: 100-240V, 50-60 Hz; 200mA
• Battery autonomy: 2.5 hours
• Applied part: CF type
• Input impedance: > 100 Mohm
• Frequency response: 0.05: 145hz
• Cmrr: > 100 dB Time constant: > 3.2 s
• Acquisition: 12 bit 800 samples/sec/channel-isochrome
• Leads: 12 standard or Cabrera
• Sensitivity: 5mm/mV; 10mm/mV; 20mm/mV ±5%
• Scrolling speed: 5mm/s; 10mm/s; 25mm/s; 50mm/s
• Signal memory: 10s for each lead
• Printer: thermal printer 8 dots/mm, paper 58 mm (3M) 110 mm (6M).
• Filters: muscles tremors 35Hz digital; power line interferences 50-60 Hz
• digital; high pass 0,5Hz digital
• Defibrillation protection: internal
• Display/Hardcopy: 3/6/12 channel (6M)
• Size 240 x 160 x 65 mm
• Weight: 1.5 kg
• Made in Italy
Standard accessories
• 6 électrodes d'extrémités pour le torse
• 1 rouleau de papier
• 1 flacon de gel
• Batterie
• Câble patient
• 4 électrodes d'extrémités
• Manuel (GB, IT)
• Guide d'utilisation rapide: GB, ES, IT
