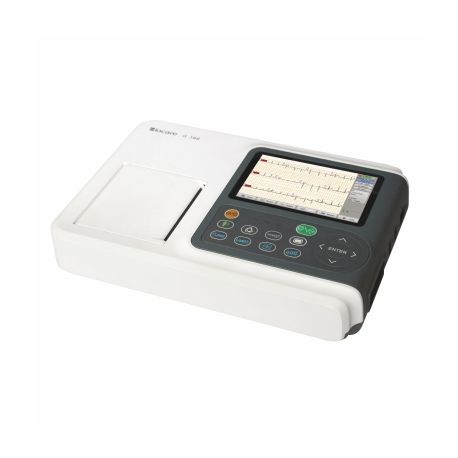

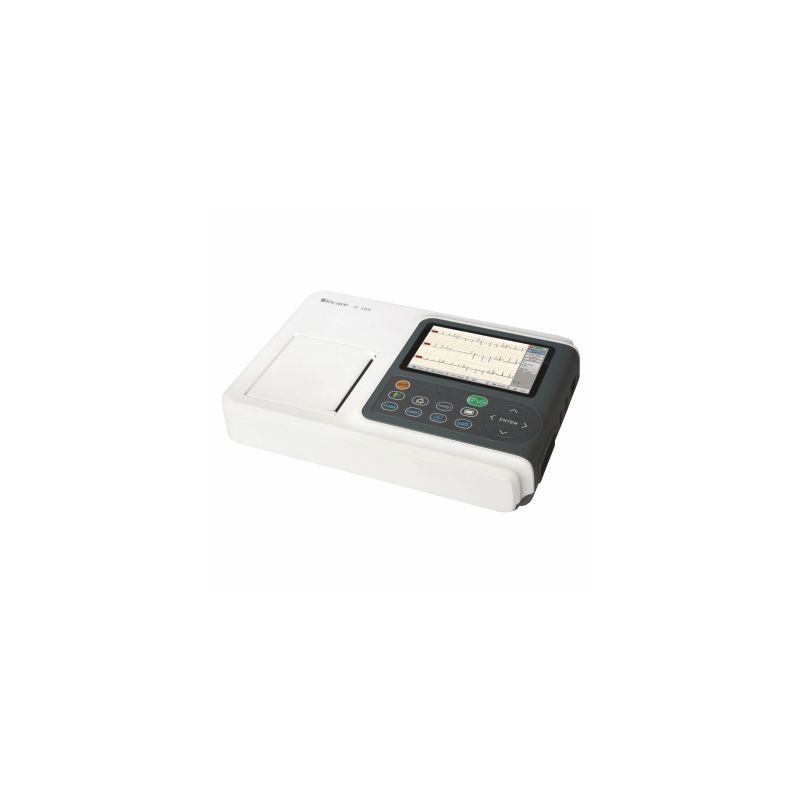

INTERMED INTERPRETATIVE DIGITAL ELECTROCARDIOGRAPH 12-LEAD 3-CHANNEL-IE300

Product ID: 5487

iE 300 is a new generation interpretative electrocardiograph capable of acquiring, printing and archiving ECG exams for adults and in the pediatric field. The iE 300 model has the best value for money.

More details

1 169,99 €

Quantity:

+ wishlist

More info

The best compromise in terms of reliability, performance and savings.

Lightweight, small in size and easy to use, it is equipped with all the analytical options of a modern ECG.

The 5 ”color liquid crystal display shows the 12 leads of the electrocardiographic trace, the configuration menus and the correct application of the electrodes, for a qualitative examination. Thanks to the different types of reports, it is possible to obtain the ECG trace with or without automatic interpretation.

It is equipped with the Biocare CardioPro ECG analysis program, which complies with the strict evaluation standards of the CSE database, to ensure high accuracy and reliability both in the measurements and in the interpretation of the ECG trace (sensitivity and specificity, detection and analysis of the QRS equal to 99%).

The exclusive analysis module for children and pediatric patients, with the 250 Hz low-pass filter, meets the latest AHA / ACC / HRS 2007 standards.
Analysis using the latest Minnesota codes.

Sampling up to 300 seconds of heart rhythm to evaluate the presence of any arrhythmias.

Complete program of digital filters and self-adapting filters, for the elimination of artifacts without distorting the path
ECG and ST segment.

Storage capacity of up to 1,500 ECG trace files and patient data.
80 mm thermo sensitive paper available in rolls.
Peripherals available 2 USB and LAN - for data transfer and internal software update.
Built-in rechargeable lithium battery that allows a working autonomy of up to 3 hours in continuous use.
Operating guide on the display to verify the procedures for acquiring the ECG trace.
Alarm marked by vocal synthesis and visual alarm due to detachment of the electrodes and lack of paper.
Acquisition mode 12 simultaneous leads
Visualization ECG trace, heart rate, time, print mode, filters, sensitivity, print speed, system prompt, alarm messages, battery charge status indicator, beep level
Mode Automatic, manual, rhythm derivation
Measurement parameters Heart rate, PR interval, QRS duration, QT / QTC interval, P / QRS / T axes, RV5 / SV1 amplitude, RV5 + SV1 amplitude
Trace display mode 1. Full screen: 3 x 4, 3 x 4 + 1 rhythm, 12 x 1, 12 x 1 + 1 rhythm. 2. Separate screen: 3 x 4, 3 x 4 +1 rhythm
Recording format ECG trace, simple, detailed recording, 3 x 4 median beat (MVB) recording; 3 x 4 + 1 rhythm - 1 x 12; 1 x 12 + 1 rhythm
Recording speed 5, 6.25, 10, 12.5, 25, 50 mm / s, ± 5%
Pacemaker detection Weak, normal, higher intensity
QTC calculation formula Bazett, Fridercia, Framingham, Hodges
Automatic recording saving Yes
Data format Biocare private ECG format
