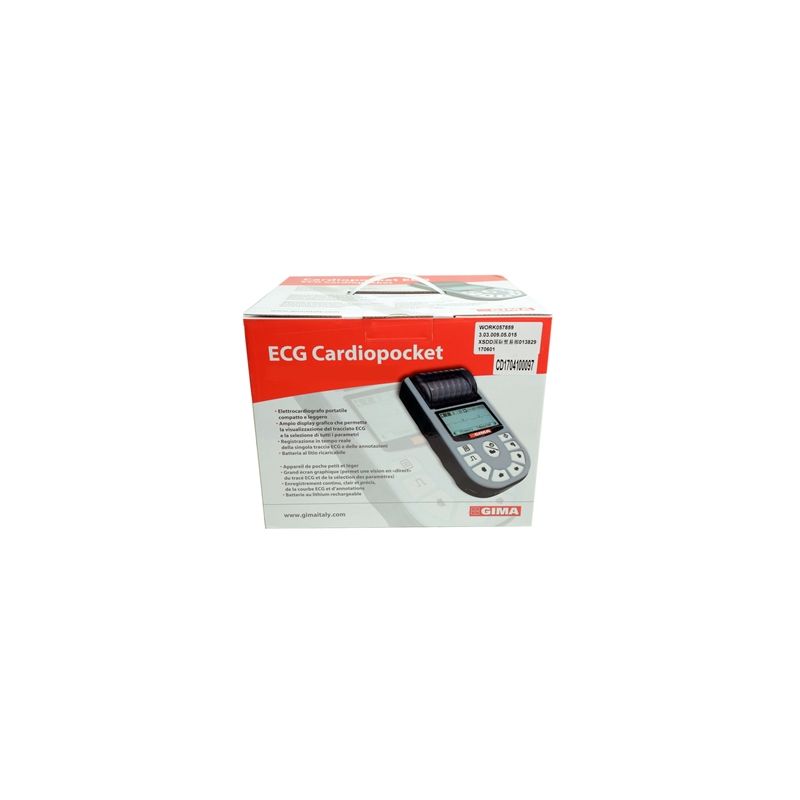

GIMA ECARDIOPOCKET ECG 1 CHANNEL View larger

GIMA ECARDIOPOCKET ECG 1 CHANNEL

Product ID: 193

Compact and lightweight pocket device with unbeatable features

More details

319,99 €

+ wishlist

Compact and lightweight pocket device with unbeatable features
- Wide graphic display (it allows "live" view of ECG trace and selection of all parameters)
- Rechargeable lithium battery (80 ECG with full charge)
- PC software with interpretation included for storing data into PC (English/Italian)
(operation system: Microsoft Windows 2000, 2003, XP, Vista, 7)
- Multilanguage internal software: GB, iT, dE, FR, ES, TR, CN
- Standard 12 leads ECG
- Real time continuous records of clear and precise single channel ECG waveform and notes. The notes include mark, sensitivity, chart speed, filter mode, etc.
- Full-touch keyboard control, easy to operate. Screen displays, working position, state of the instrument are clear and easy to be read.

Integrated thermal printer
Weight: 800 g with rechargeable battery
Compact: only 190 mm (size 190 x 90 x 40 mm)
60 x 35 mm wide display
Technical Specifications
• Power: AC: 100-240 V, 50/60 Hz - DC: 12 V rechargeable battery
• Noise level: =15 µVp-p
• CMRR: >100 dB
• EMG filter: 35 Hz
• Time constant: =3.2 s
• Sensitivity display: standard sensitivity: 10 mm/mV ±5%
• Sensitivity setting: 1/2, 1, 2 (cm/mV), conversion deviation = 5%
• Recording system: thermal-array, 8 dots/mm (vertical), 16 dots/mm (horizontal, 25mm/sec)
• Paper speed: 25mm/s - 50mm/s ±5%
• Recording paper: 50 mm, 20 m, high-speed roll
• Safety standard: IEC class I, type CF
• Input circuit current: =100 nA
• Fuse standard: AL 220V/2A
• Weight: 800 g (with rechargeable battery and paper)
• Dimension: 190 x 90 x h 40 mm
• 60 x 35 mm wide display
Standard accessories
• Patient cable
• 1 roll of paper
• 1 rechargeable lithium battery
• 4 limb electrodes
• 6 chest limb electrodes
• 1 user manual (English)
• 1 CD software and
• Cable for connection to PC
