INTERMED 12-LEAD ELECTROCARDIOGRAPH PORTABLE INTERPRETATIVE TABLET FORMAT -IE10

Product ID: 5490

Technological evolution in the medical field has allowed the development of diagnostic tools with small dimensions and increasingly similar to commonly used devices such as tablets.

More details

2 399,99 €

Quantity:

+ wishlist

More info

Technological evolution in the medical field has allowed the development of diagnostic tools with small dimensions and increasingly similar to commonly used devices such as tablets.

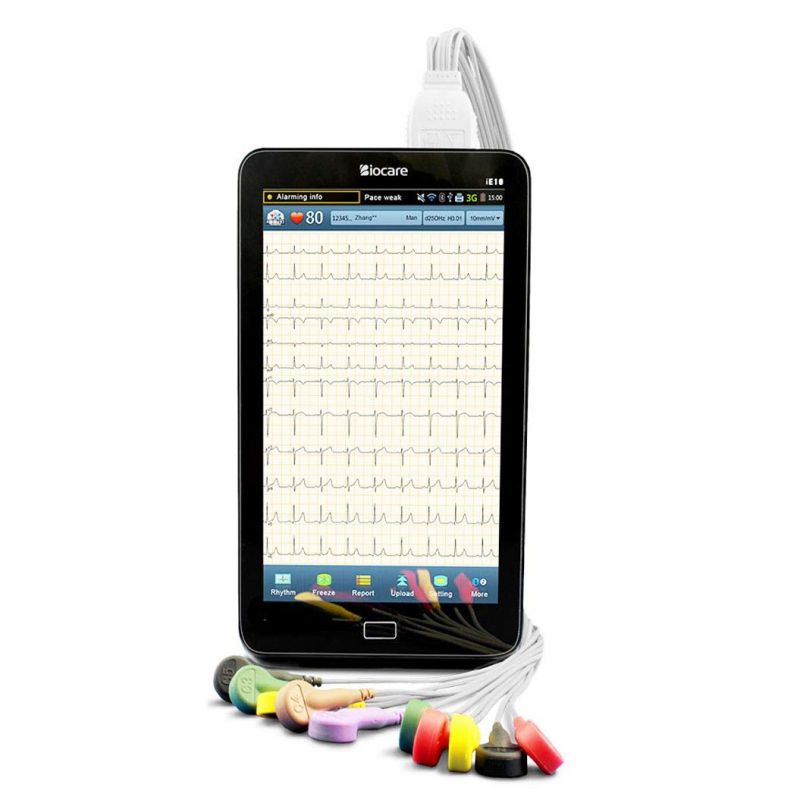

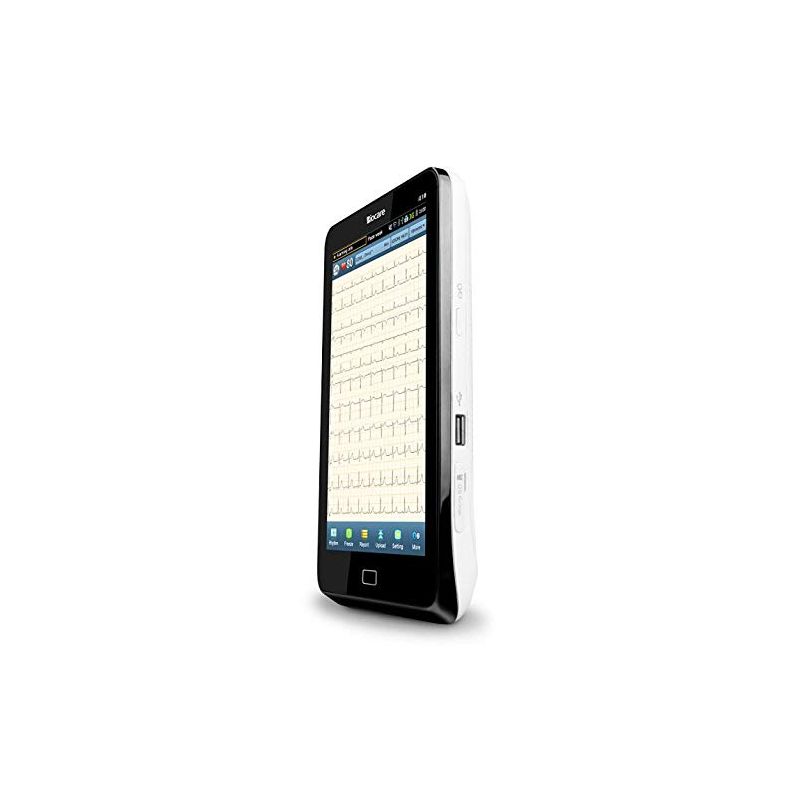

Our partner Biocare has also moved in this direction, creating the new iE10, interpretative 12-lead electrocardiograph, with a Tablet format.
This instrument includes all the functions of a modern ECG but with unmatched portability, which allows it to be used in various areas such as clinics and hospitals. Outpatient clinics and private offices, ambulances and in cases of emergency, ensuring speedy execution. accuracy in the acquisition and analysis of the signal and versatility in the management of the exam.
With iE10 it is now possible to obtain ECG tracing reports complete with all measurements and automatic interpretation, being able to print it directly on a laser device or wirelessly transfer it to remote reporting stations.

Highlights ECG iE10

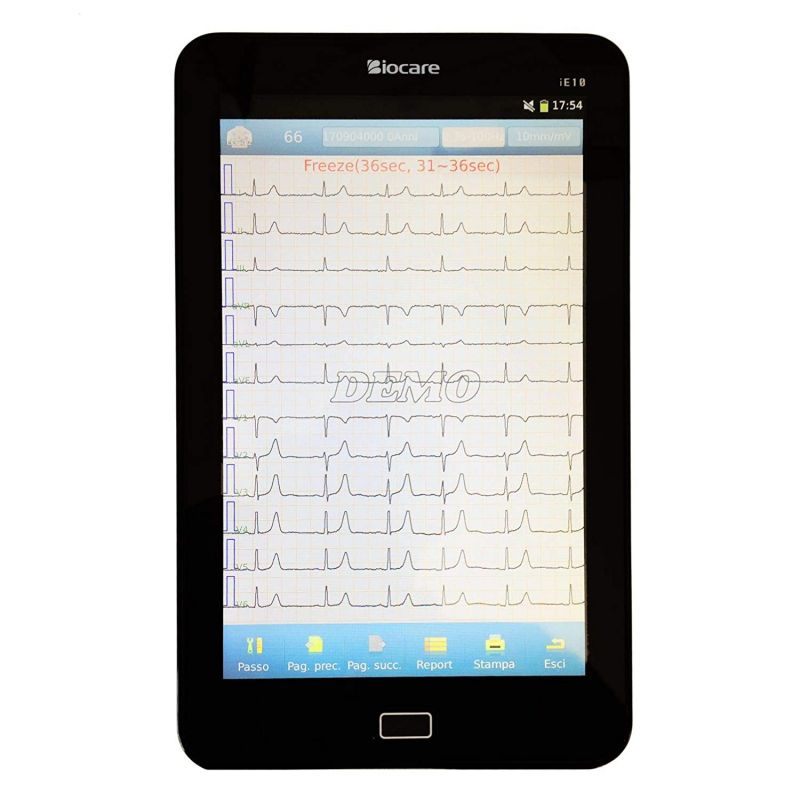

7 ”color liquid crystal touch screen display that allows you to simultaneously view the ECG trace, parameter measurements and clinical interpretation in vertical and horizontal position.
Operating mode selectable between manual, automatic and stored exam loading.
Accurate and reliable interpretation thanks to the Biocare CardioPro ECG analysis program, which complies with the strict evaluation standards of the CSE database, to ensure high accuracy and reliability in both measurements and interpretation of the ECG trace.
Complete program of digital filters and self-adapting filters, allows the elimination of artifacts without distorting the ECG trace
Up to 300 seconds of frozen trace on screen, as a practical aid in analyzing events in critically ill patients.

Measurement parameters

heart rate
PR interval
QRS duration
QT / QTC interval
P / QRS / T axes
amplitude RV5 / SV1
amplitude RV5 + SV1;
Recording format

3x4 + 1 rhythm lead
3x4 + 3 rhythm leads
6x2 + 1 rhythm lead
12x1
Generable reports

Simple: 12-lead ECG trace, patient data, PR interval, QRS interval, QT / QTc interval, P / QRS / Ti axis, RV5 / SV1 and RV5 + SV1 amplitude, interpretation analysis
Detailed: 12-lead ECG trace, patient data, PR interval, QRS interval, QT / QTc interval, P / QRS / Ti axis, RV5 / SV1 and RV5 + SV1 amplitude, analysis interpretation, amplitudes and duration (P, P ', Q, R, R ', S, T), STJ for the 12 leads
Data memory

ability to save up to 3,000 exams in the device memory
on SD card
Equipped with built-in rechargeable lithium-ion battery, with an autonomy of 4 hours in continuous use.
Wireless connection for transferring electrocardiographic exams to the optional ECG-1000 software. "
