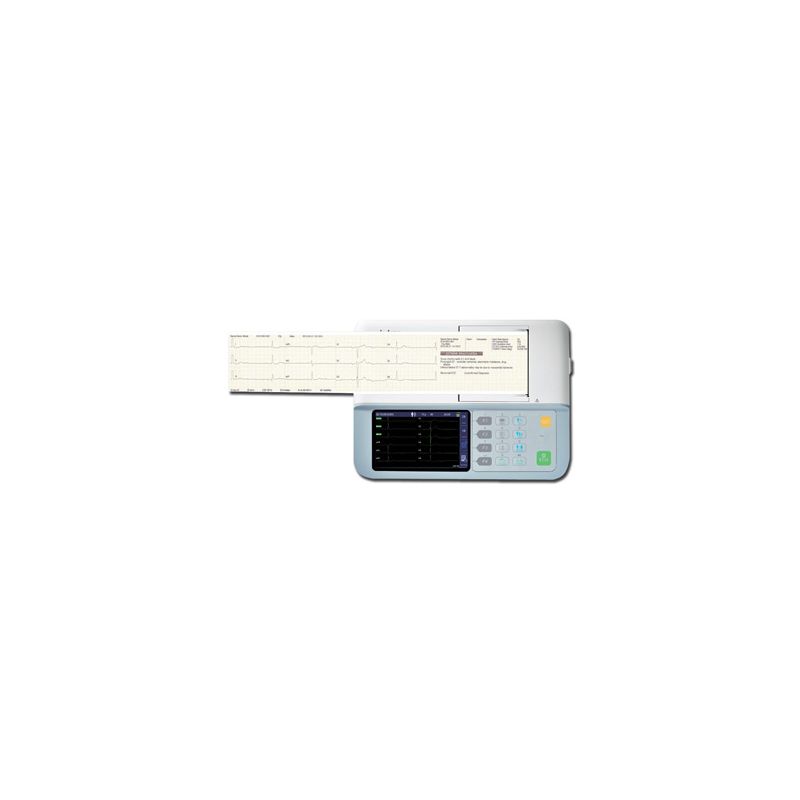

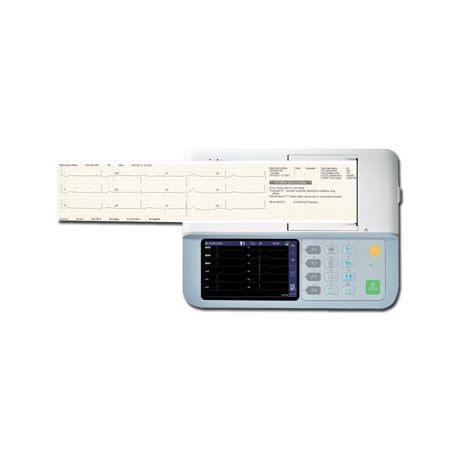

GIMA MINDRAY BENEHEART R3 ELECTROCARDIOGRAPH

Product ID: 4259

MINDRAY BENEHEART R3 ELECTROCARDIOGRAPH - 3 channels. Lightweight portable cardiograph for resting ECG diagnosis.

More details

1 149,99 €

Quantity:

+ wishlist

More info

MINDRAY BENEHEART R3 ELECTROCARDIOGRAPH - 3 channels

Lightweight portable cardiograph for resting ECG diagnosis.

• Reliable analysis - Glasgow algorithm
Utilizes the University of Glasgow ECG analysis algorithm, one of the world-leading resting ECG interpretations.
• Great Portability - only 1.2 kg
Weighs only 1.2 kg with battery, easy to carry.
• 5” clear colour display
Offers the highest resolution in industry, enabling clinicians to observe real-time waveforms accurately.
• Convenient operations
ECG recording is automatically unfolded on the writing pad at the top of the unit for notes or signature.
• Unique recorder - Z-folded or rolling paper
Compatible with both rolling paper and Z-fold paper.
Easily switchable without dismantling the pressure lever.

POWER:
• Supply: AC input without external power adaptor or battery operation
• AC power: 100 to 240 VAC ± 10% 60 VA
• Battery-type: rechargeable Lithium ion battery 11.1 V typical, 2500 mAh
- capacity: 6 hours of continuous operation without recording or 500 ECGs in 2.5 x 4 format at 25 mm/s and 10 mm/mV
- charge time: 3.5 hours with power off

PROCESSING:
• ECG analysis
• samplig rate: 500 samples/second (sps)
• Digital sampling rate: 1000 samples/second/channel
• Pacer detection sampling rate: 16000 samples/second/channel
• ECG amplifier: DC-coupled
• Acquisition mode: Pre-acquisition or post-acquisition provide 10 seconds of instantaneous ECG acquisition
• Baseline drift filter: 0.05 Hz, Baseline Drift Removal (BDR)
• AC filter: 50/60 Hz ± 0.3 Hz
• ADC: 24 bit
• Imput impedance: 50 MD at 10 Hz, defibrillator protected
• Patient leakage: < 10 µA
• Heart rate meter: 30 to 300 BPM ± 10% or ± 5 BPM, whichever is greater
• Sensitivity/gain: 5, 10, 20 mm/mV, Auto

DISPLAY:
• Dysplay: 24 bit Colour display TFT LCD with LED graphics backlit
• Resolution: 800 x 400
• Display data: Patient ID, gender, age, heart rate, clock, battery power indicator, waveforms, lead labels, speed, gain, filter settings, warning messages, information messages, network status and USB
• Thermal printer: Dot array/Width 80 mm/speed 5, 12.5, 25, 50 mm/s

SOFTWARE:
• Measurement and interpretation: according to University of Glasgow ECG analysis algorithm
• Resting ECG mode: Records and prints 12-lead resting ECG with 10-second duration as a standard
• Patient information: Patient ID, secondary ID, age, date of birth, gender, race, medication class and V3 electrode placement
• Internal storage: 800 ECGs in internal memory
• ECG Storage format: PDF format and Mindray storage format
• Multi-language internal software: GB, FR, IT, ES, DE, PL, PT, TR, RU, HU, RO, CZ, CN
• Report formats Thermal printer/PDF/A4/letter
• Size: 250 x 194 xh 56 mm
• Weight: 1.2 kg including battery
