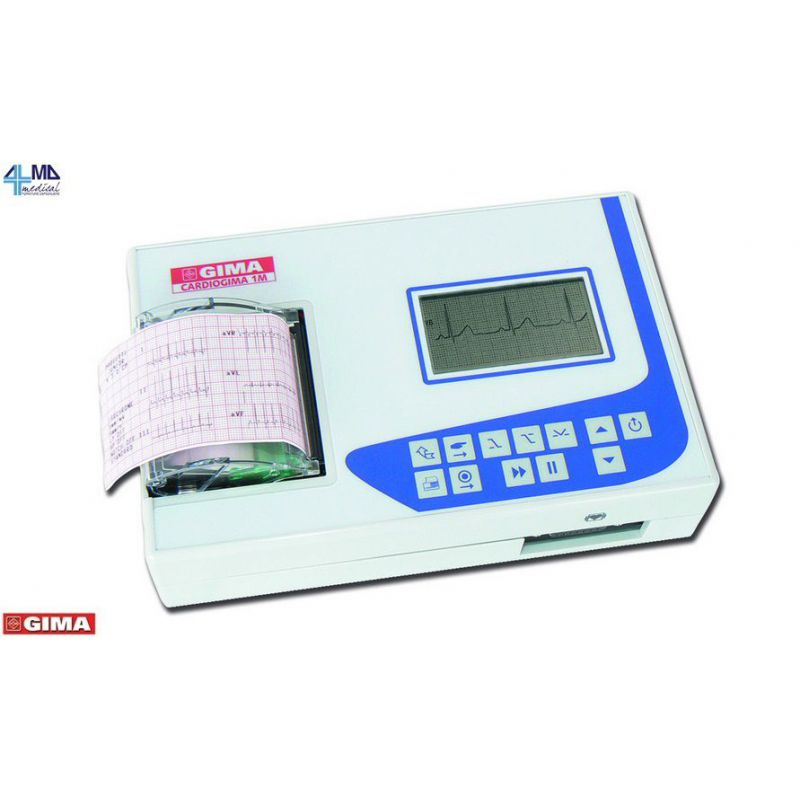

GIMA ECG CARDIOGIMA 1M - ELECTROCARDIÓGRAPH OF 1/3 CANALES - 12 DERIVATIONS

Product ID: 2500

Very small measurement and weight electrocardiograph, equipped with high resolution LCD display (8 points/mm printed copy) and parameters calculation function.

More details

686,99 €

Quantity:

+ wishlist

More info
Download

Very small measurement and weight electrocardiograph, equipped with high resolution LCD display (8 points/mm printed copy) and parameters calculation function. It does not generate any interpretation, but calculates the necessary parameters for it. With automatic or manual registration, signal memory of 10 seconds for each derivation.

Includes digital filters muscle tremors, network alterations and lags of the base line.

Standard equipment

• 1 patient cable
• 6 precordial electrodes
• 4 peripheral electrodes
• 1 paper roll
• 1 gel tube
• 1 instruction manual in English

technical information

• Power supply: Ni-CD rechargeable internal batteries
• Network feeding device: 220 V- ±10%; 50 - 60 Hz; 150 mA max. insulation CL2B
• Autonomy of batteries: 3 hours
• Applied part: type CF
• Input impedance:  100 Mohmios
• Frequency response: 0.05: 145 Hz
• CMRR:  100 dB - Constant time:  3,2 s
• Acquisition: 12 bits, 800 samples/second/channel, isocrone
• Sensitivity: 5 mm/mV; 10 mm/mV; 20 mm/mV ± 5%
• Displacement speed: 5 mm/s; 10 mm/s; 25 mm/s; 50 mm/s
• Signal memory: 5 s per derivation
• Printer: thermal printer 8 points/mm, paper 58-60 mm
• Filters: 35 Hz digital muscle tremors; 50-60Hz digital network disturbances; 0.5Hz digital
• Protection against defibrillation: internal
• Viewing: 1 channel
• Printing: 1 - 3 channels
• Measurements: 190 x 120 x 60 mm
• Weight: 900 g
• Standards: 93/42/EEC; EN601-1; EN601-1-2; IEC601-2-2-2
